DESCRIPTION

The electronically controlled front and rear suspension forms the most important part of the controlled damping suspension system (C.D.S) with which the top models in the 167 range are equipped. Therefore the theoretical description and diagnosis of the electronic components are dealt with in the ELECTRICAL AND ELECTRONIC DIAGNOSIS. The controlled damping suspension system is characterized by the possibility of adapting the setting of the shock absorbers to the widely differing driving conditions, guaranteeing the highest degree of comfort, road holding and safety in all situations.

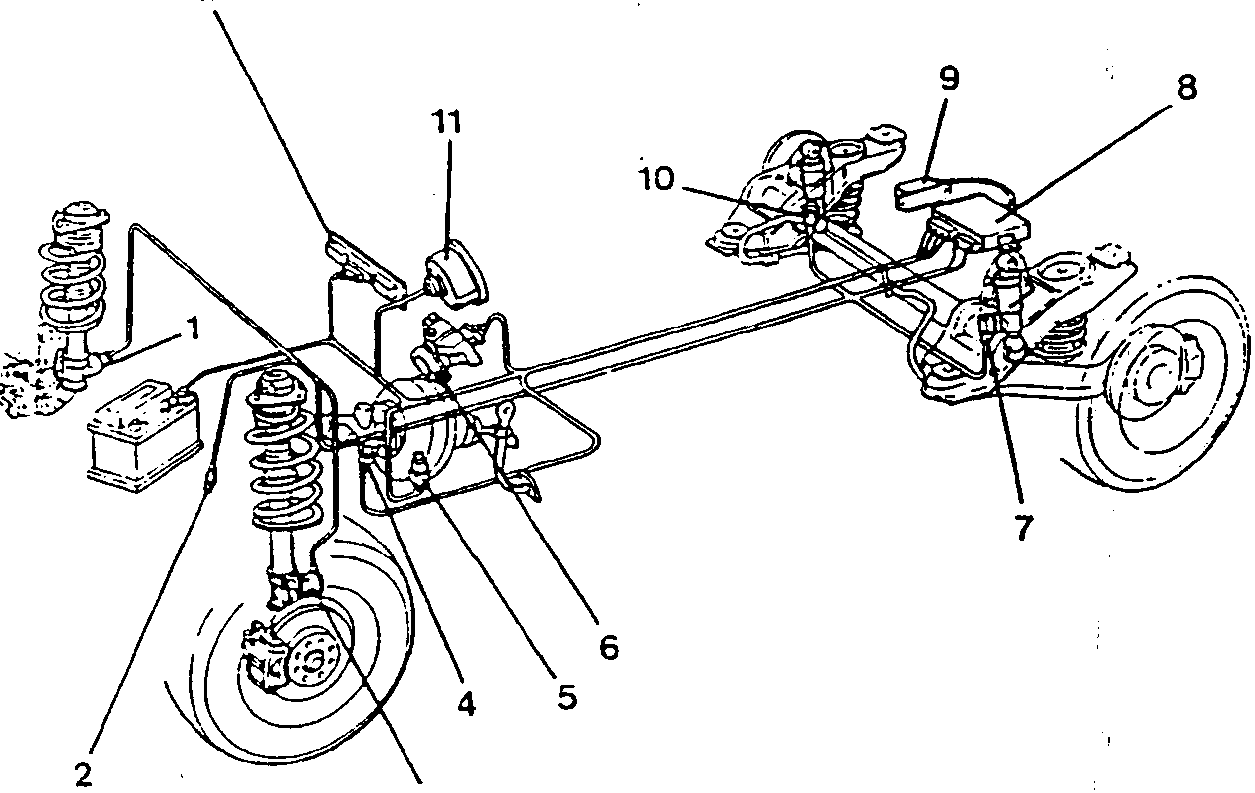

1. Solenoid valve on front right-hand shock absorber
2. Speedometer sensor
3. Solenoid valve on front left-hand shock absorber
4. Braking system pressure sensor
5. Shock absorber solenoid valve control relay
6. Lever group with steering sensor incorporated
7. Solenoid valve on rear left-hand shock absorber
8. Electronic control unit
9. Vertical accelerometer
10. Solenoid on rear right-hand shock absorber
11. Speedometer sensor on instrument panel
12. Control panel
