Front suspensionDescription
DESCRIPTION

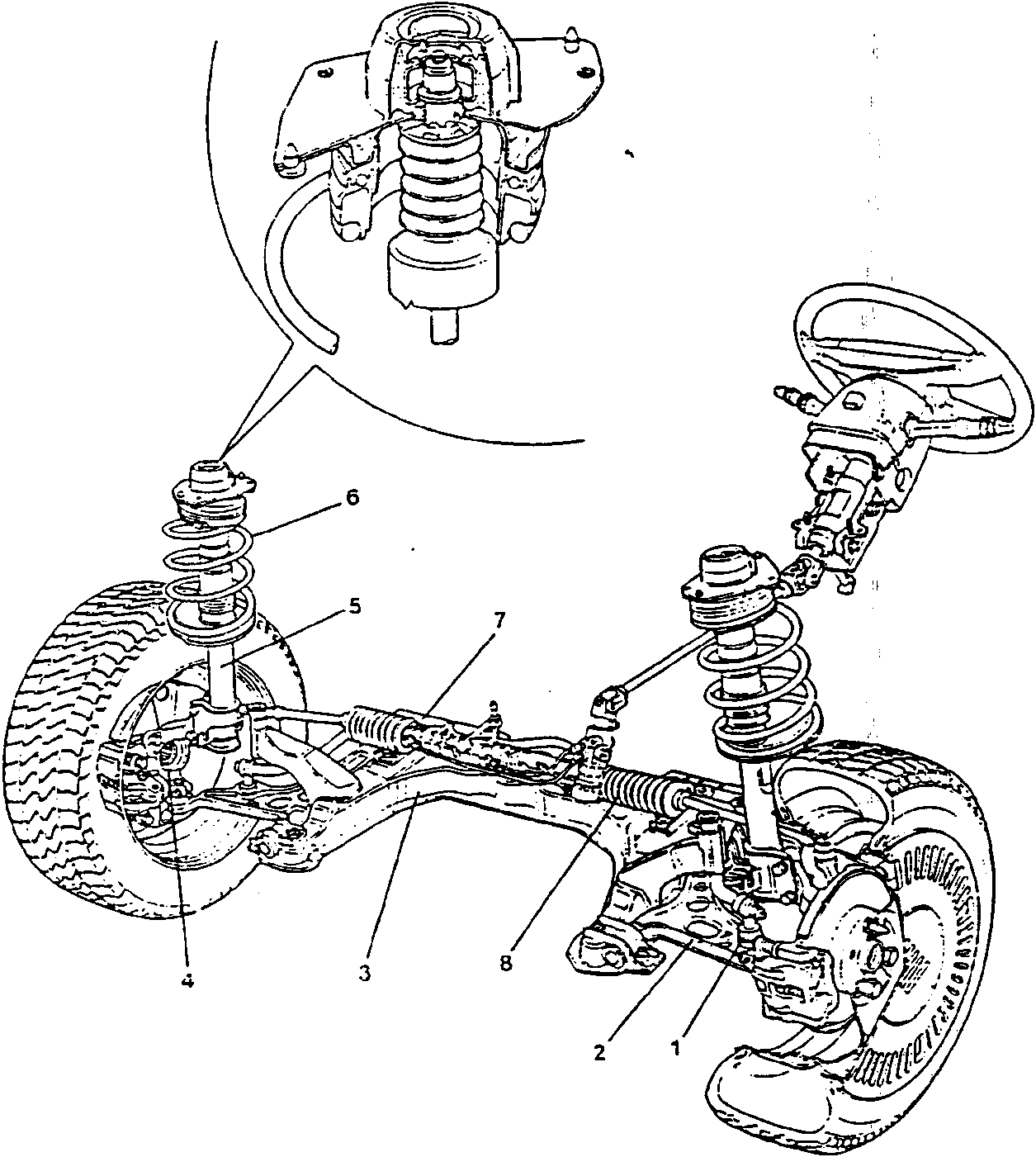

The independent front wheel suspension is of the McPherson type with telescopic supports and negative reaction rod and is common to all the vehicles in the "167" range. For the models equipped with controlled damping suspension, variable "setting" shock absorbers have been adopted (see: CONTROLLED DAMPING SUSPENSION) though the overall structure of the assembly remains unaltered.
- Swinging arm-antiroll bar connecting rod
- Swinging arm
- Front cross rail
- Wheel support
- Shock absorber
- Helical spring
- Antiroll bar
- Steering box
