Specific tools

Make

Alfa Romeo

Model

155 Factory Service Manual

Year

1992–1998

Section

Specific tools (2.4 V6) › Specific tools

Front suspensionSpecific tools

SPECIFIC TOOLS

TOOL NUMBER	DESCRIPTION
1.820.047.002	Plate for extracting front wheel hub bearing inner race (Use with 1.820.223.000 and 1.821.051.000)
1.820.089.000	Tool for compressing front suspension spring
1.820.223.000	Half rings for extracting inner race of front wheel hub bearing (Use with 1.820.047.002 and 1.821.051.000)
1.820.238.000	Plate for compressing front suspension spring (Use with 1.820.089.000)
1.820.247.000	Tool for retaining front shock absorber strut
1.821.037.000	Puller for removing hub from wheel support (only for 2.4 V6)
1.821.045.000	Tool for: - extracting and inserting outer race of bearing from front wheel support (Use with 1.821.149.000 only for 1.8-2.0 T.S.) - inserting hub into front wheel support (only for 2.4 V6)
1.821.051.000	Tool for: - extracting wheel hub from support (only for 1.8/2.0 T.S.) - extracting inner race of front wheel hub bearing (Use with 1.820.047.002 and 1.820.223.000)
1.821.099.000	Puller for extracting bearing inner race from support
1.821.149.000	Support for extracting bearing outer race from front wheel support (Use with 1.821.045.000) (only for 1.8/2.0 T.S.)
1.821.209.000	Tool for inserting bearing and wheel hub into front wheel support
1.821.217.000	Tool for front wheel support bearing (only for 2.4 V6)
1.822.117.000	Wrench for loosening and tightening the nut securing front shock absorber

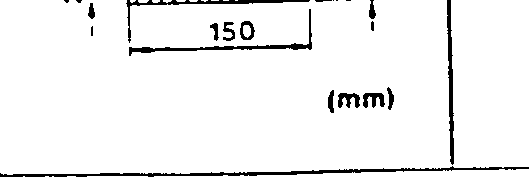

(mm)	Support for extracting bearing outer race from front wheel support (only for 2.4 V6)

53 Steering & suspension
