Checks and inspections (page 4 of 4)

Make

Alfa Romeo

Model

155 Factory Service Manual

Year

1992–1998

Section

Air intake box

Fuel system (Twin Spark)Checks and inspections · page 4 of 4

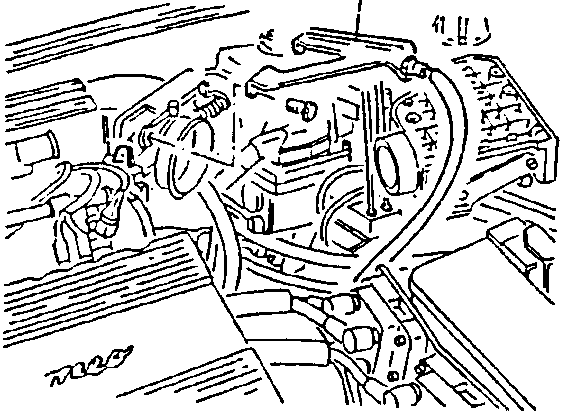

1. Remove the accelerator cable support bracket.

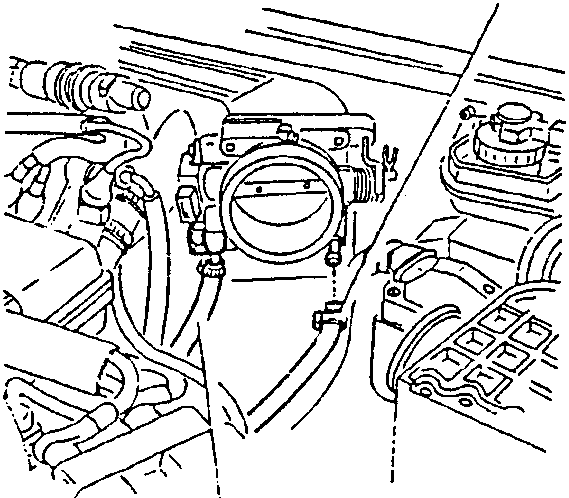

1. Disconnect the engine coolant inlet hose from the throttle body.
2. Disconnect the engine coolant outlet hose from the throttle body.

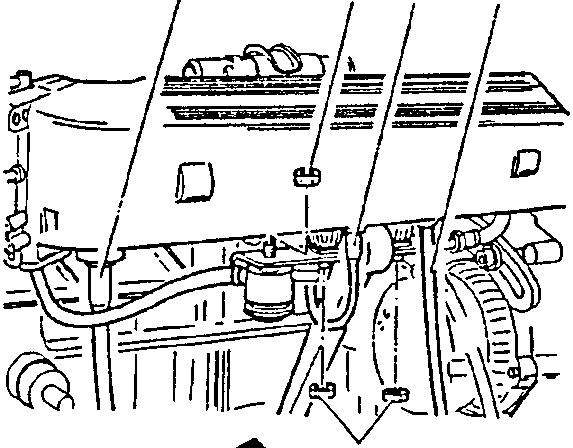

1. Disconnect the vacuum intake hose (from the servo brake) from the air intake box.
2. Disconnect the fuel vapour recirculation hose from the air intake box.
3. Disconnect the fuel pressure regulator vacuum intake hose from the air intake box.
4. Unscrew the nut securing the impulse dashpot to the bracket without disconnecting the fuel lines.
5. Unscrew the two screws securing the air intake box to the support strut.

04 Engine
