Checks and inspections

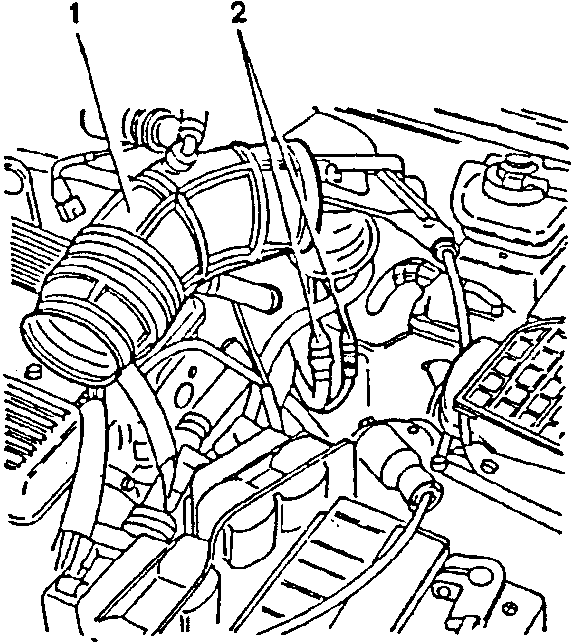

1. Loosen the two clamps securing the corrugated sleeve to the air-flow meter and the throttle body and move it to one side.
2. Disconnect the two electrical connections from the lambda probe.

• Raise the vehicle.

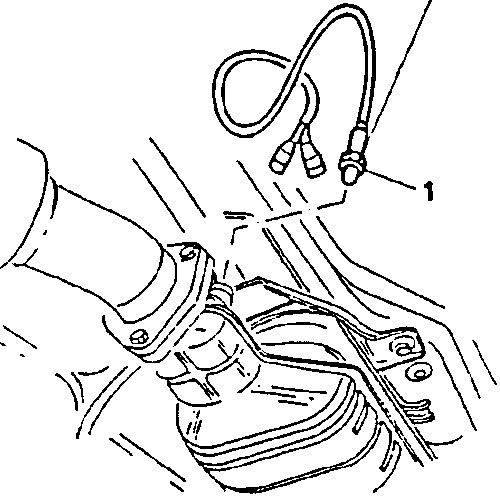

1. Remove the lambda probe from the catalytic converter.

50 ÷ 60 Nm
5.1 ÷ 6.1 kgm

CHECKS AND INSPECTIONS

To check the operation of the lambda probe and of the heating resistance, refer to the ELECTRICAL - ELECTRONIC DIAGNOSIS manual.

EXHAUST SYSTEM - REAR SECTION

The rear section of the exhaust is composed of three silencers connected by a pipe and supported by the underbody by flexible rings. The connection to the catalytic converter is obtained by a flange with seal ring.

REMOVAL/REFITTING

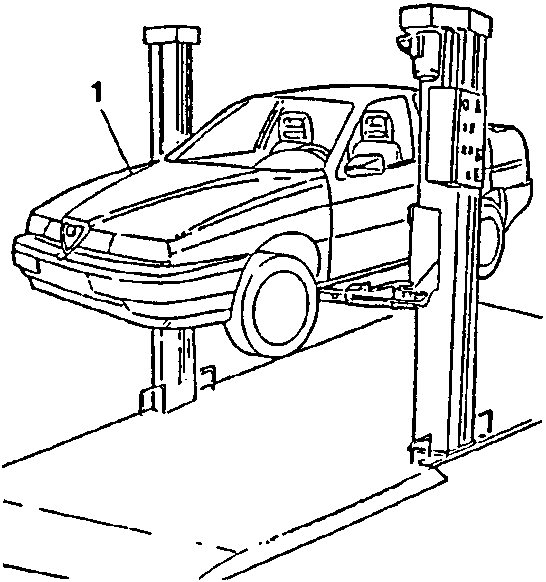

1. Place the vehicle on a lift and raise it.
