Alfa Romeo 155 Factory Service Manual (1992-1998)04 · Fuel system (Twin Spark)
04 · Engine

Exhaust system

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Exhaust system › Exhaust system
Fuel system (Twin Spark)Exhaust system

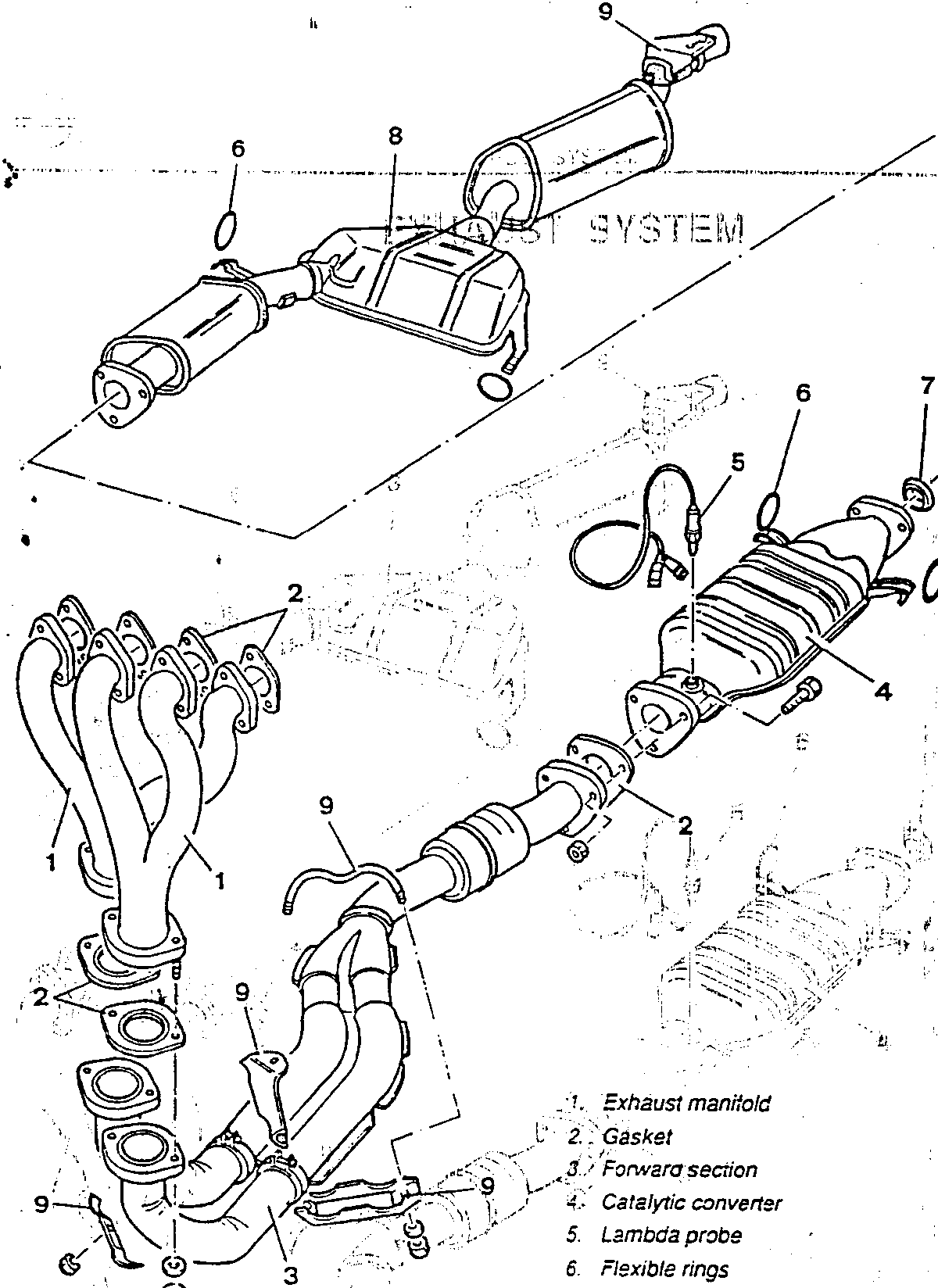

Exhaust system diagram showing manifold, catalytic converter, silencers, and supports.
  1. Exhaust manifold
  2. Gasket
  3. Forward section
  4. Catalytic converter
  5. Lambda probe
  6. Flexible rings
  7. Seal ring
  8. Rear section - silencers
  9. Supports
