Alfa Romeo 155 Factory Service Manual (1992-1998)04 · Fuel system (Twin Spark)
04 · Engine

Exhaust system

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Exhaust system › Exhaust system
Fuel system (Twin Spark)Exhaust system
  1. Disconnect the flanges connecting the exhaust manifolds.
  2. Disconnect the intermediate supports.
Exhaust manifold and intermediate support disconnection
  1. Disconnect the flange connecting the catalytic converter.
Forward section of exhaust pipe removal
  1. Remove the forward section of the exhaust pipe.
  2. Remove the gaskets.

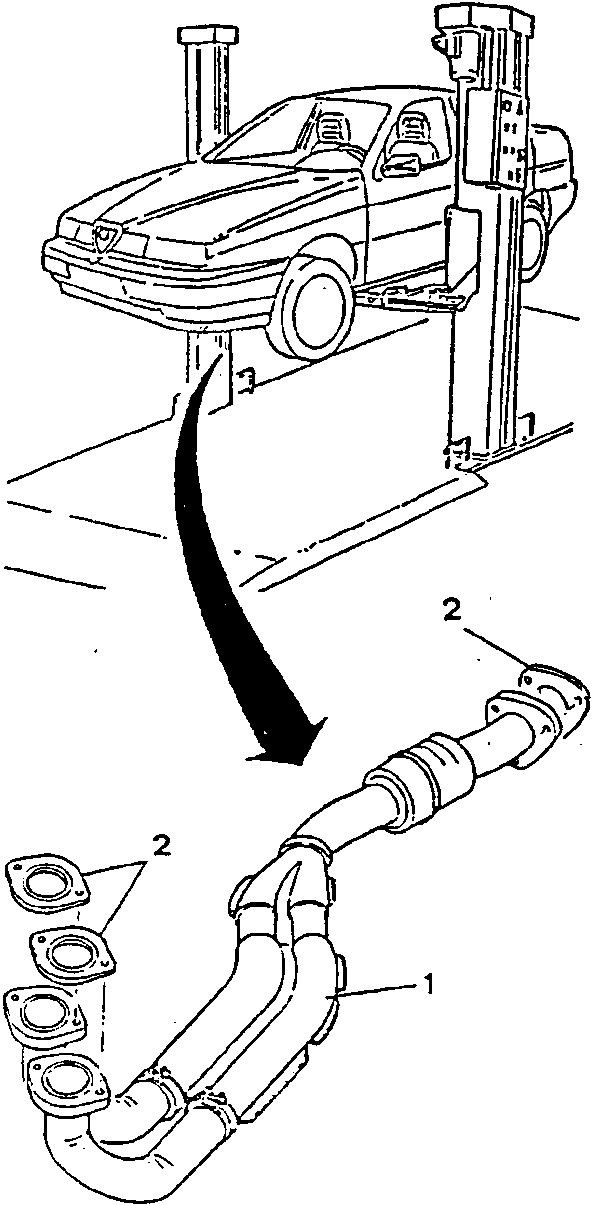

Car on lift with removed exhaust pipe
