Removal/refitting
- Make
- Alfa Romeo
- Model
- 155 Factory Service Manual
- Year
- 1992–1998
- Section
- Fuel level meter › Removal/refitting
Fuel system (Twin Spark)Removal/refitting
This device is of the axial floating type fixed to the suction device by a bayonette type coupling.
REMOVAL/REFITTING
- Disconnect the negative cable from the battery.

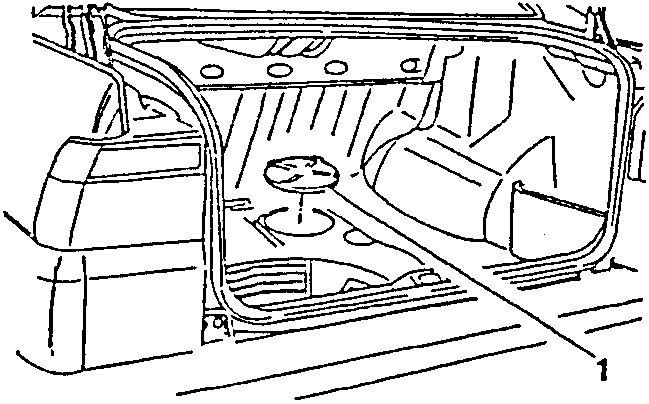

- Operating from the luggage compartment, remove the lower covering and remove the cover to gain access to the pump and the fuel level meter.
- Disconnect the connection from the fuel level meter.

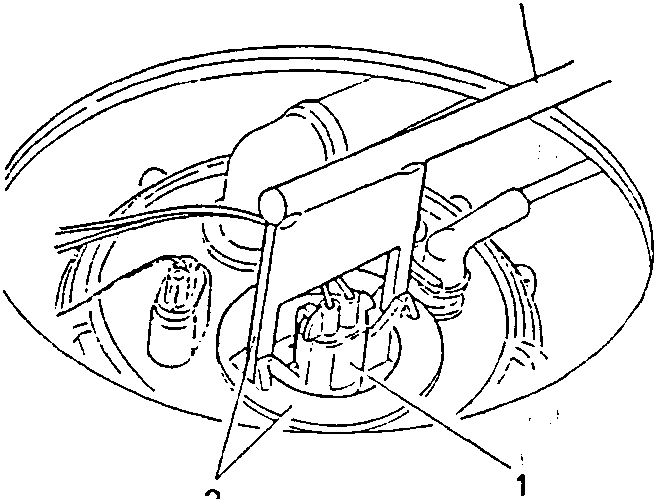

- Remove the fuel level meter using tool N° 1.854.040.000.
CHECKS AND INSPECTIONS
For a complete functional check refer to the ELECTRONIC - ELECTRICAL DIAGNOSIS manual; to check the settings, in accordance with the table given below, use suitable equipment.
| Height (mm) | Indicator reading | Resistance (Ω) |
|---|---|---|
| 51.5 | 4/4 | 0 to 7 |
| 115.5 | 3/4 | 59 to 69 |
| 163.5 | 1/2 | 116 to 126 |
| 199.5 | 1/4 | 186 to 201 |
| 216.5 ± 3 | Max reserve | 262 |
| 231 | 0 | 295 to 315 |

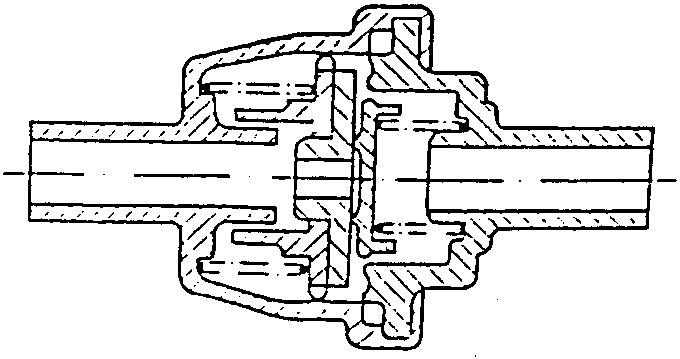

SAFETY VALVE
This valve:
- ventilates the tank
- draws off the fuel vapours
The vacuum in the tank, which could arise when fuel is drawn off is mainly prevented by the ventilation valve set at 0 to 0.020 bars.
If the pressure in the tank exceeds 0.07 to 0.085 bars, the valve will open and for safety reasons a part of the fuel vapour pressure will be discharged to the atmosphere.
