Removal/refitting

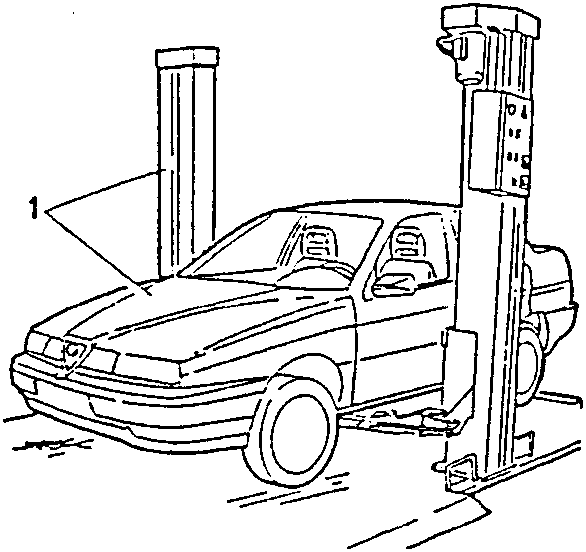

1. Place the vehicle on a lift.

• Disconnect the negative cable from the battery
• Release the pressure within the tank by loosening the filler cap.
• Empty the tank by sucking the fuel out through the filler neck with a suitable pump.

CAUTION: Place the fuel removed from the vehicle into a suitable container.

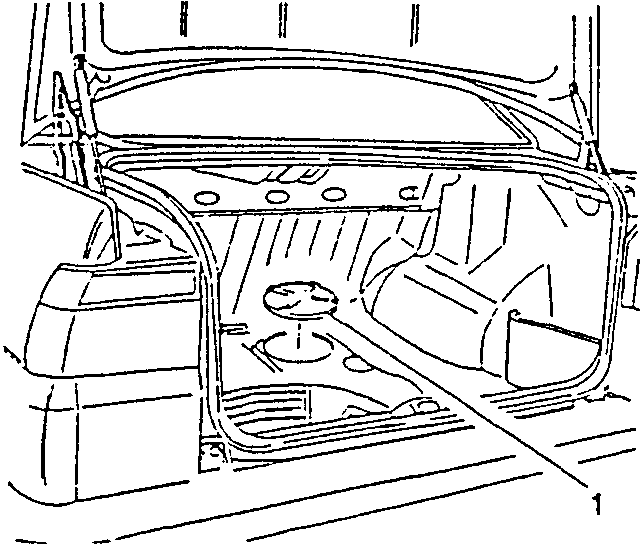

1. Operating from the luggage compartment, remove the lower covering and remove the cover to gain access to the pump and the fuel level meter.

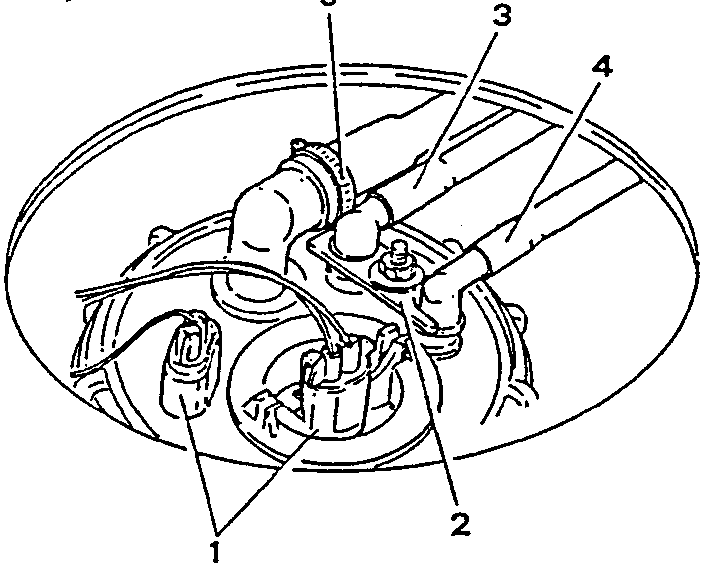

1. Disconnect the electrical connections from the pump and the fuel level meter.
2. Remove the safety plate.
3. Disconnect the fuel delivery pipe from the pump (white connection).
4. Disconnect the fuel return pipe from the pump (black connection).
5. Disconnect the breather pipe connecting the lower and upper parts of the tank.

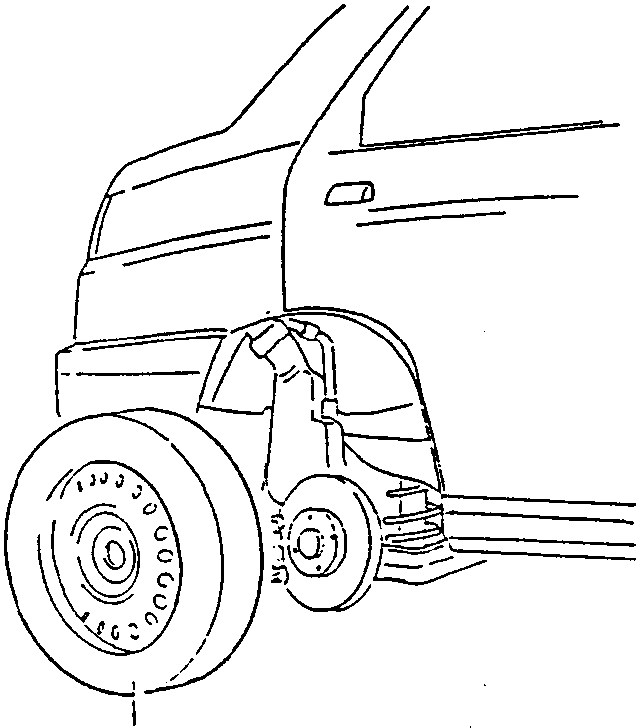

1. Remove the right-hand rear wheel.
