Removal/refitting (page 2 of 2)
- Make
- Alfa Romeo
- Model
- 155 Factory Service Manual
- Year
- 1992–1998
- Section
- Removal/refitting
Fuel system (Twin Spark)Removal/refitting · page 2 of 2

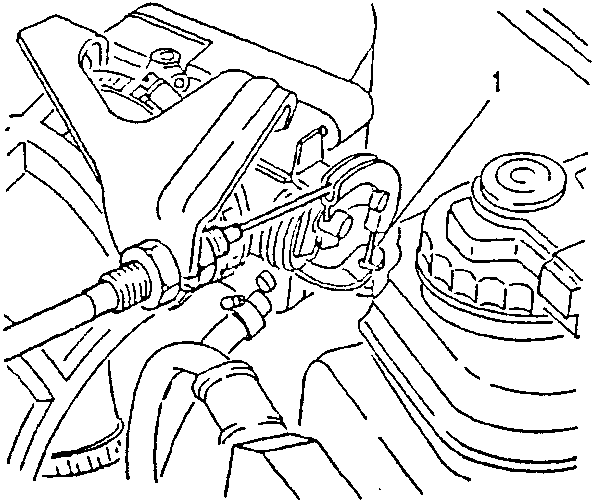

- Disconnect the accelerator cable from the throttle body.

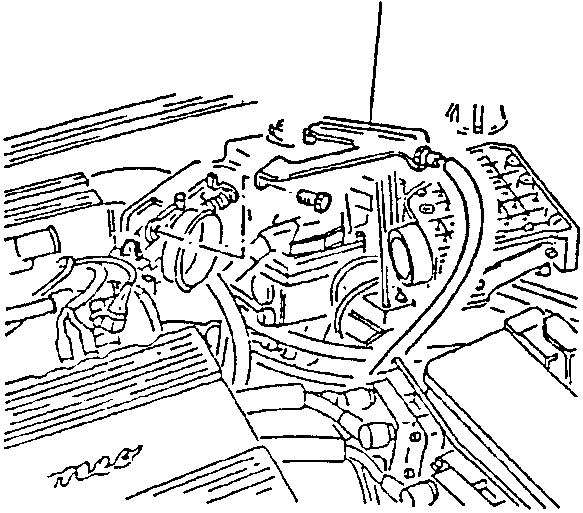

- Remove the accelerator cable support bracket.

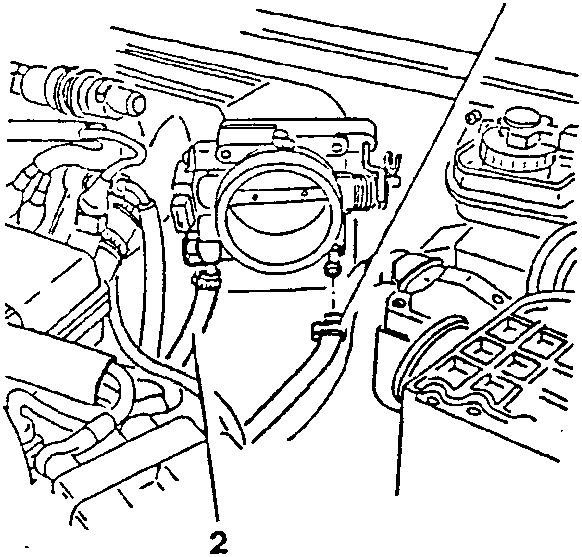

- Disconnect the engine coolant delivery hose from the throttle body.
- Disconnect the engine coolant outlet hose from the throttle body.

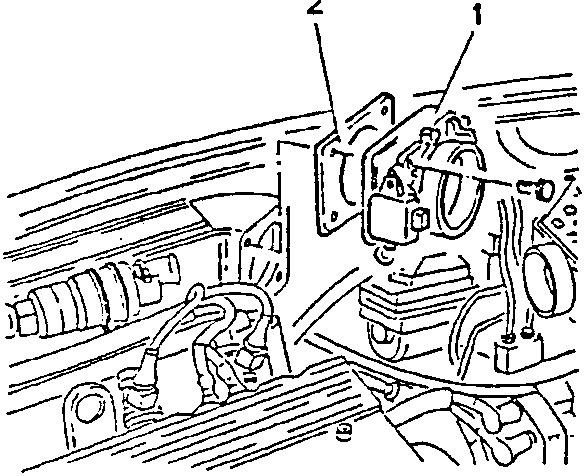

- Unscrew the screw and remove the complete throttle valve body.
- Remove the gasket.
