Fuel system (Twin Spark)Removal/refitting

REMOVAL/REFITTING

  • Disconnect the negative cable from the battery.
  1. Operating from the luggage compartment, remove the lower covering and remove the cover in order to gain access to the pump and the fuel level meter.

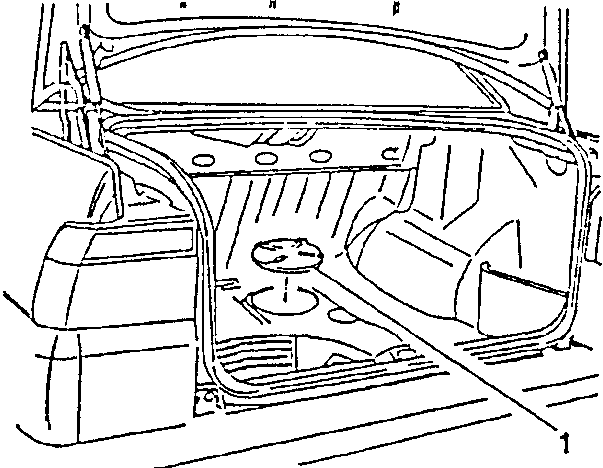

Diagram showing access to fuel pump and level meter from luggage compartment
  1. Disconnect the electrical connections from the pump and the fuel level meter.
  2. Remove the safety plate.
  3. Disconnect the pipe conveying fuel from the pump (white connection).
  4. Disconnect the pipe conveying fuel to the pump (black connection).
  5. Disconnect the breather pipe connecting the lower and upper parts of the tank.

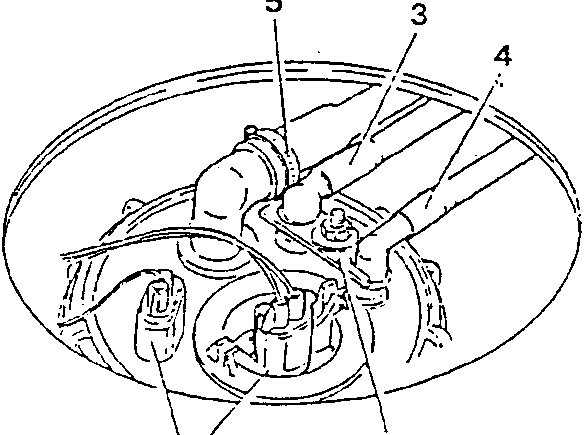

Diagram showing fuel pump and connections with numbered parts
  1. Remove the fuel level meter using tool N° 1.854.040.000.

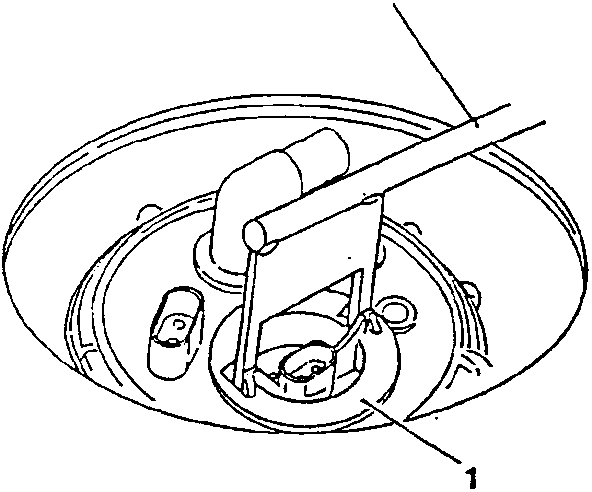

Diagram showing removal of fuel level meter with tool 1.854.040.000

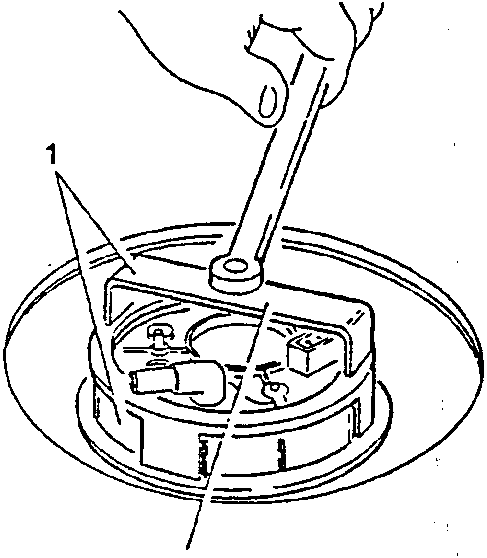

  1. Remove the ring nut securing the fuel pump using tool N° 1.821.167.000 (A.3.0631).
Diagram showing removal of fuel pump ring nut with tool 1.821.167.000 (A.3.0631)
