Fuel system (V6)Description · page 2 of 2

Disconnect the negative cable from the battery.

  1. Disconnect the two lambda probe connections.

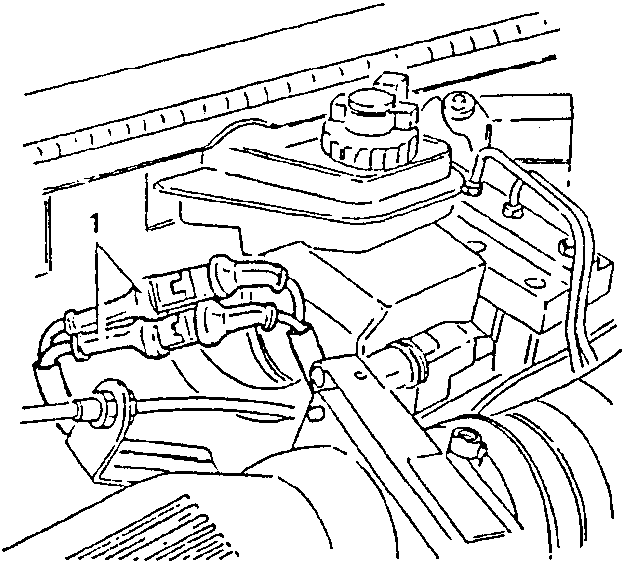

Lambda probe connections disconnected
  1. part name

Raise the vehicle

  1. Disconnect the two flanges connected to the exhaust manifold.

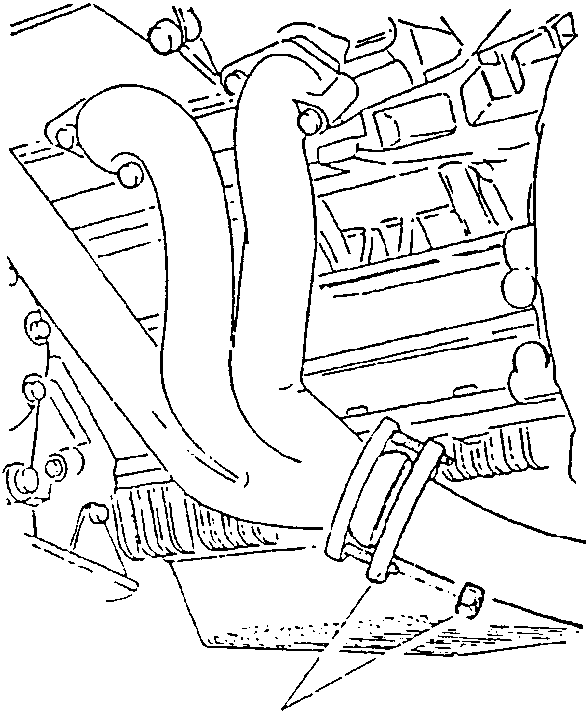

Flanges disconnected from exhaust manifold
  1. part name

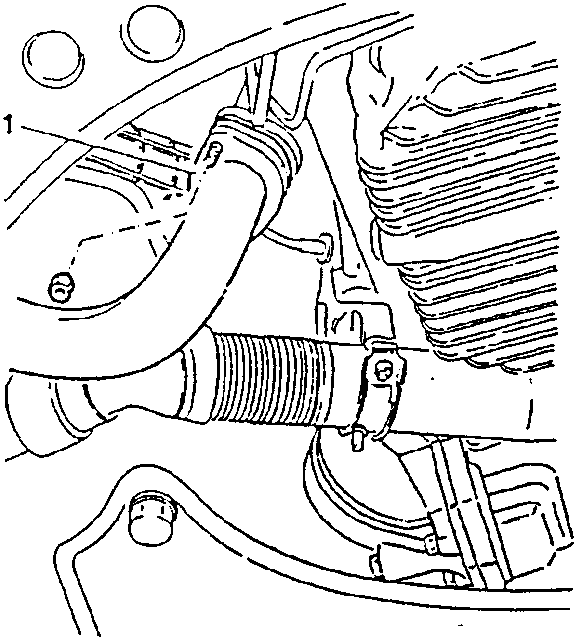

Bolt securing intermediate bracket
  1. Slacken and remove the bolt securing the intermediate bracket.

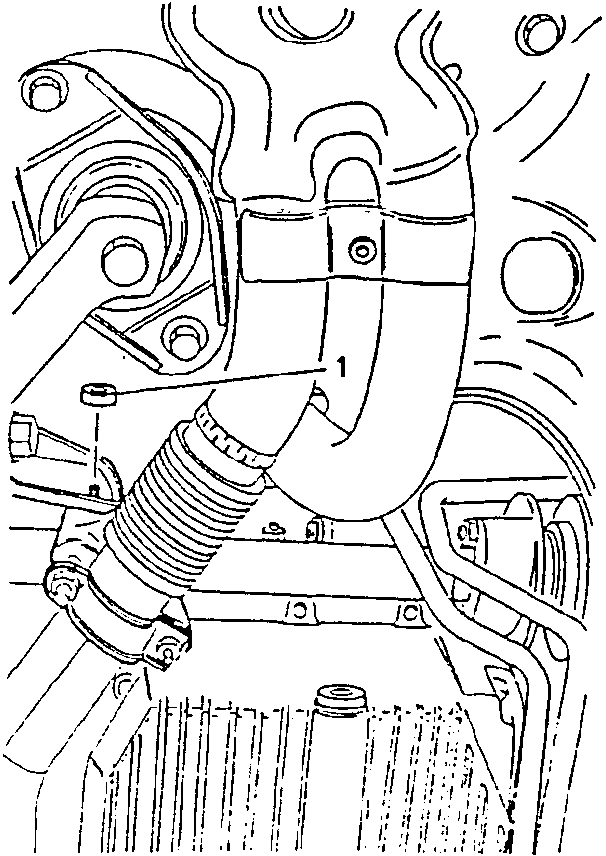

Intermediate bracket with bolt removed
  1. part name
