Fuel system (V6)Fuel System · page 2 of 2

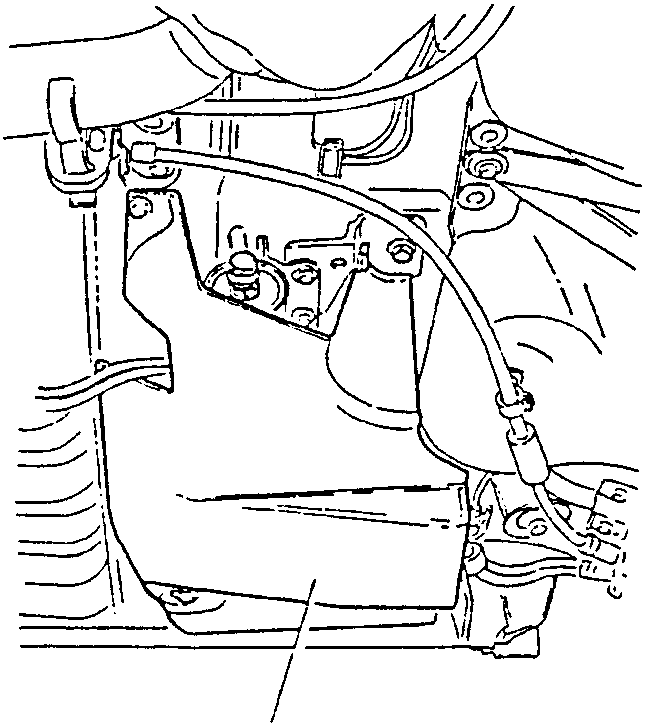

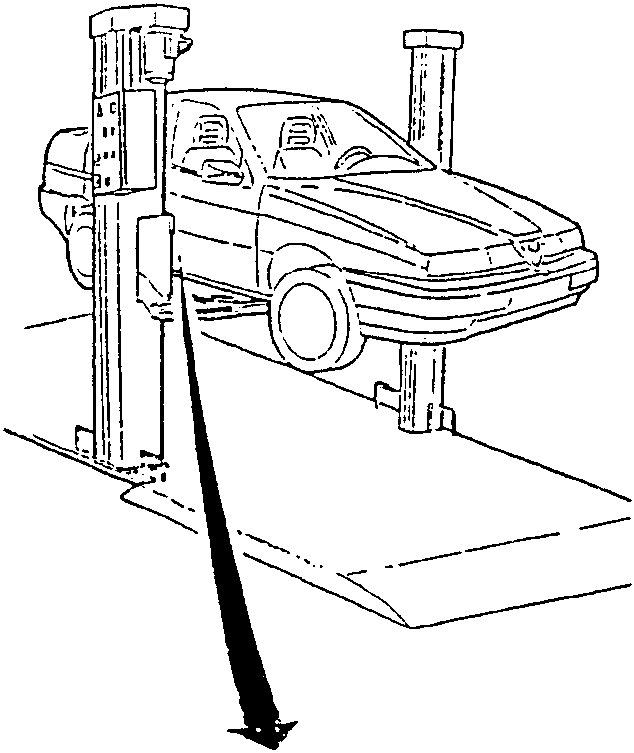

- Raise the vehicle and remove the fuel filter protection.

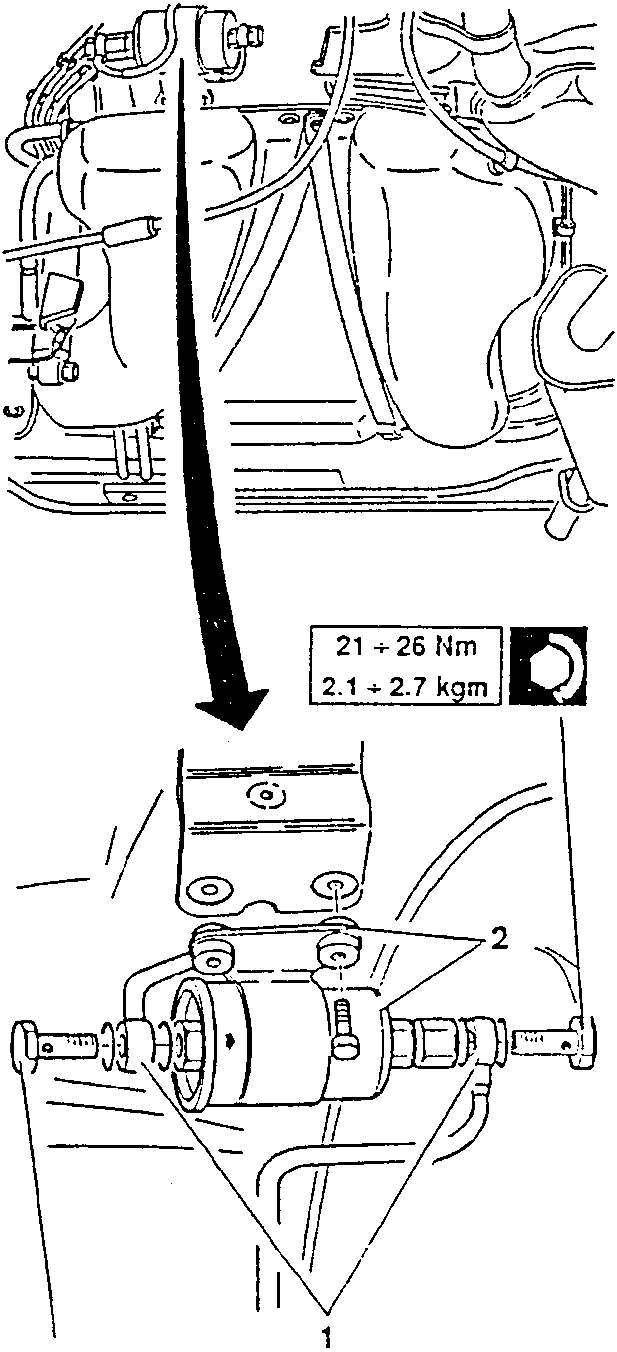

- Unscrew the fuel inlet and outlet connections from the filter.
- Collect the fuel which leaks out during this operation in a suitable container and plug the ends of the connections without bending or twisting the rigid pipes.
- Remove the fuel filter together with its supporting clamp.
21 ÷ 26 Nm
2.1 ÷ 2.7 kgm
30 ÷ 37 Nm
3.1 ÷ 3.8 kgm
