Fuel system (V6)Removal/refitting

REMOVAL/REFITTING

  • Disconnect the negative cable from the battery.

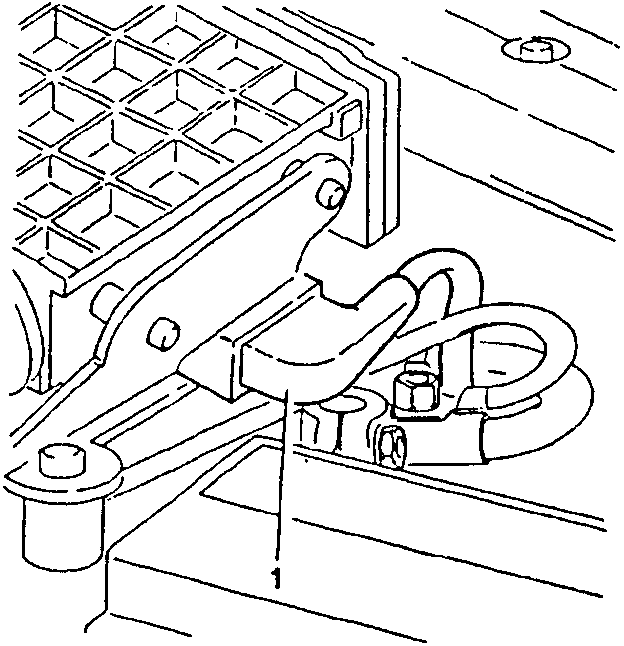

  1. Disconnect the connection from the air flow meter.
Air flow meter connection with labeled part 1

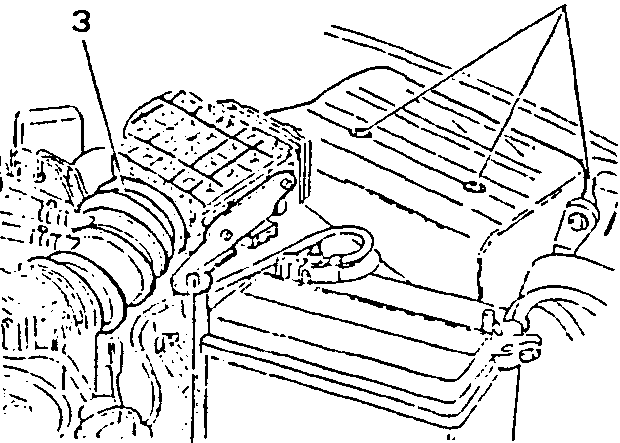

  1. Unscrew the screws securing the the air filter cover.
  2. Unscrew the screw securing the air flow meter support bracket.
  3. Disconnect the corrugated sleeve from the air flow meter after loosening the relative clamp.
Air flow meter with labeled parts 1, 2 and 3

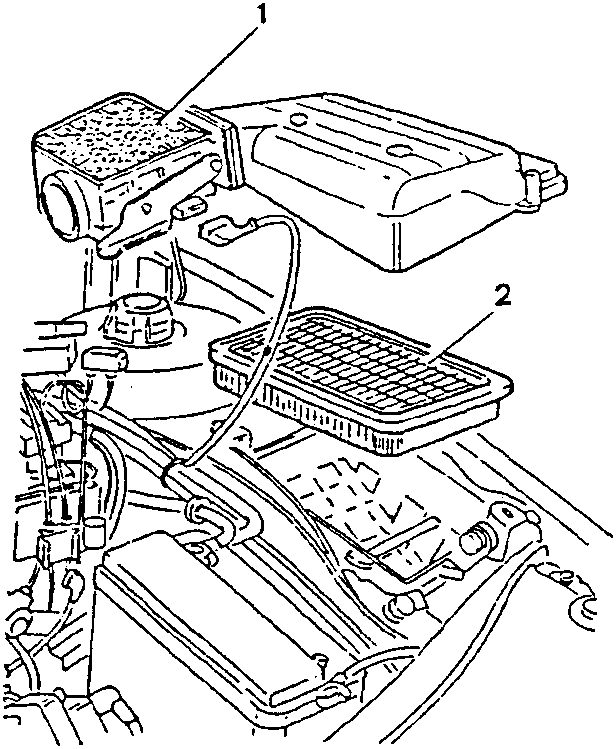

  1. Remove the air filter cover-air flow meter assembly.
  2. Remove the filter element.
Air filter cover-air flow meter assembly with labeled parts 1 and 2

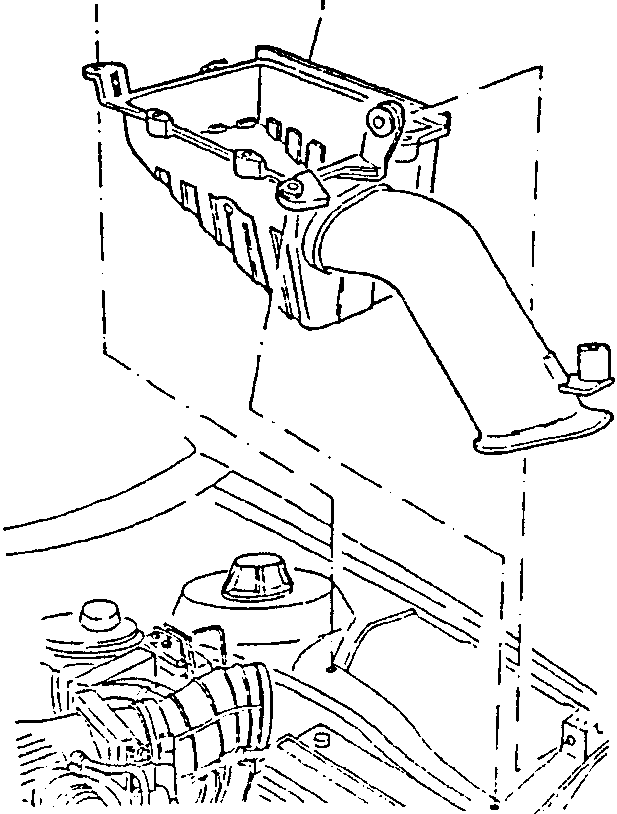

  1. Remove the air cleaner box.
Air cleaner box with labeled part 1
