Gearbox outer linkage

GEARBOX OUTER LINKAGE

DESCRIPTION

The gearbox outer linkage assembly can be divided into two types depending on the type of gearbox.

For gearboxes with a medium-low pick-up torque for 1.8 - 2.0 T.S. engines, the traditional system of shafts and rods is adopted. For gearboxes with high a pick-up torque for 2.4 V6 engines, a system of control cables has been introduced which, in addition to improving system maintenance, permits a notable reduction in vibration, and a consequent lowering of the noise level when compared to the traditional system. It also improves the characteristics of docility and precision of engagement.

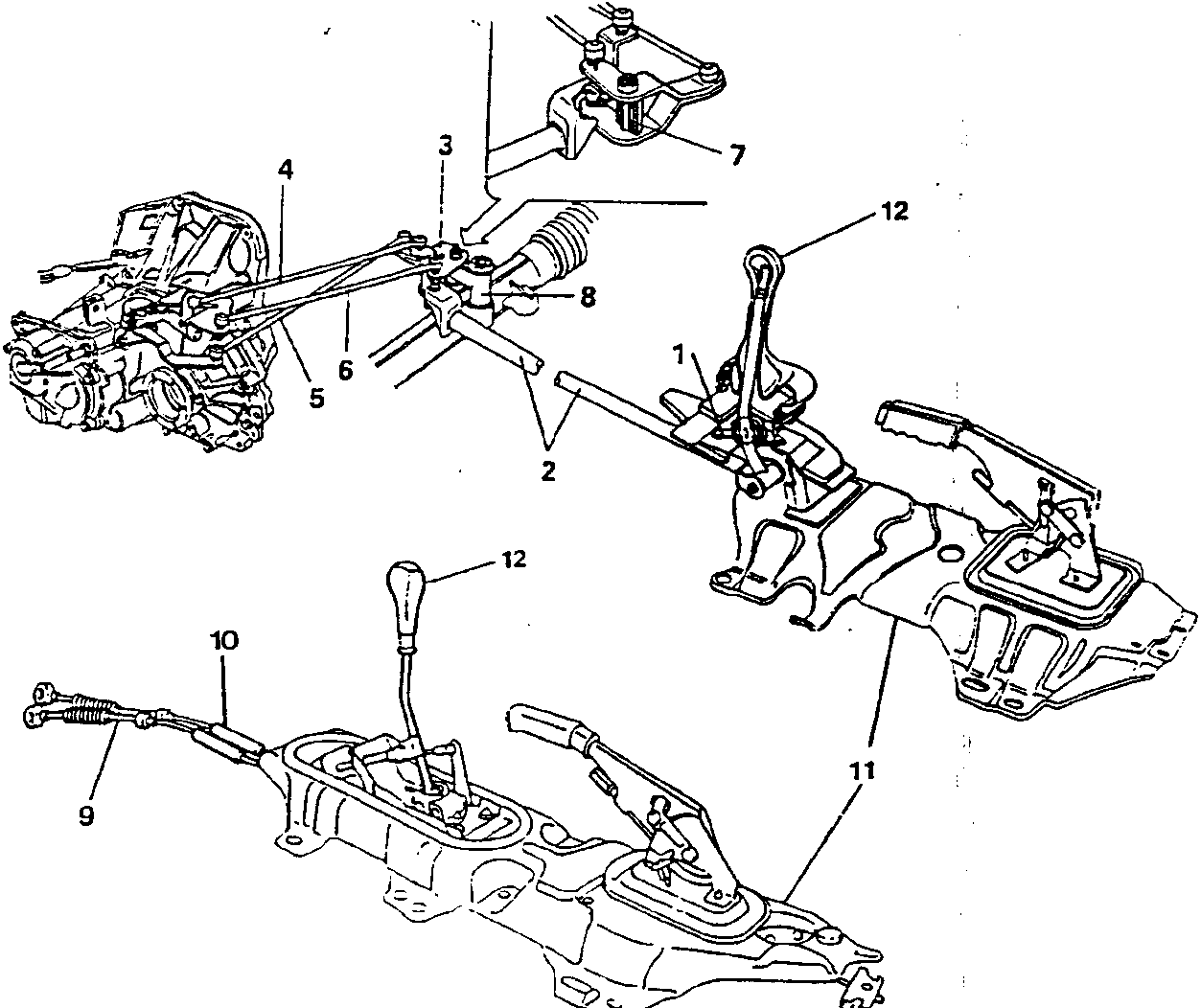

1. Speed selection lever support stand
2. Control rod
3. Speed selection and engagement rod return and support stand
4. Speed selection lever control rod
5. Speed engagement lever control rod
6. Reaction rod
7. Bearings
8. Pin retaining relay support and gear engagement and selection rod support
9. Speed selector cable
10. Speed engagement cable
11. Central support
12. Gear control lever
