Layshaft disassembly (page 2 of 2)

Make

Alfa Romeo

Model

155 Factory Service Manual

Year

1992–1998

Section

Layshaft disassembly

Gearbox and differentialLayshaft disassembly · page 2 of 2

1. Remove flexible retaining ring securing 1st and 2nd speed engagement sliding hub.

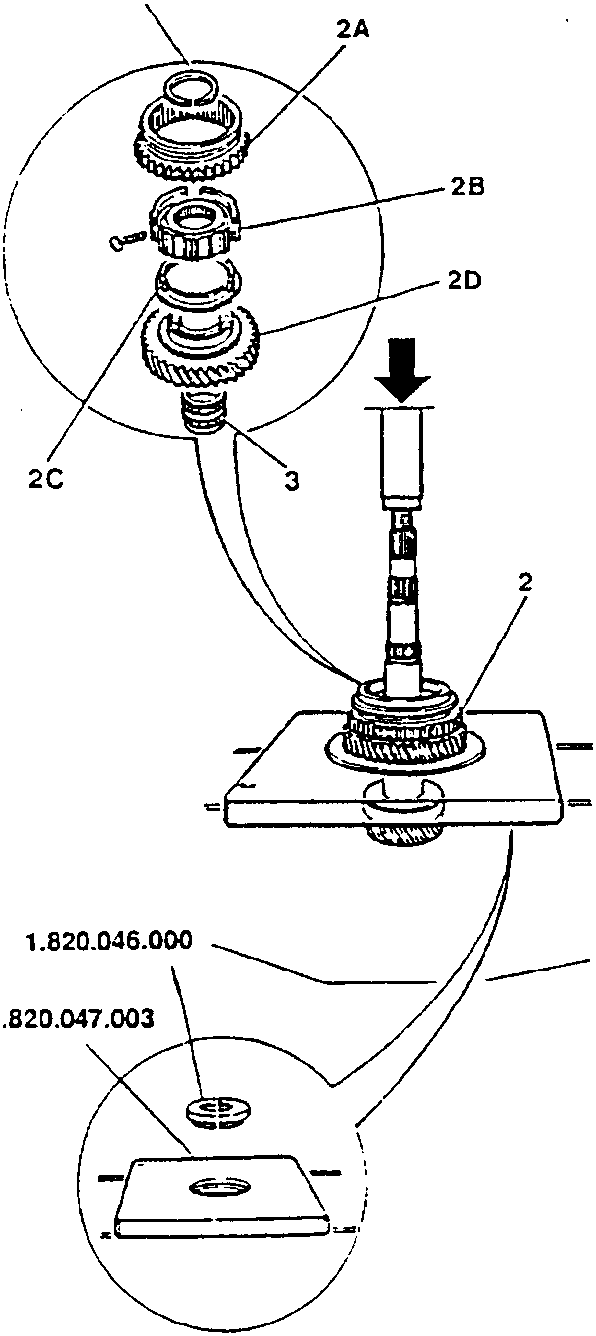

2. Using a press and suitable equipment, remove 1st and 2nd speed engagement sliding sleeve and reverse gear (2A) hub (2B), 1st speed synchronizer ring (2C) and 1st speed driven gear (2D).
3. Withdraw 1st speed driven gear roller bearing.

1. 1st speed synchronizer ring (2C)
2. 1st speed driven gear (2D)
3. Press tool 1.820.046.000
4. Press tool 1.820.047.003
5. Remove flexible retaining ring securing front bearing.
6. Using a press and suitable equipment remove front bearing from transmission shaft.

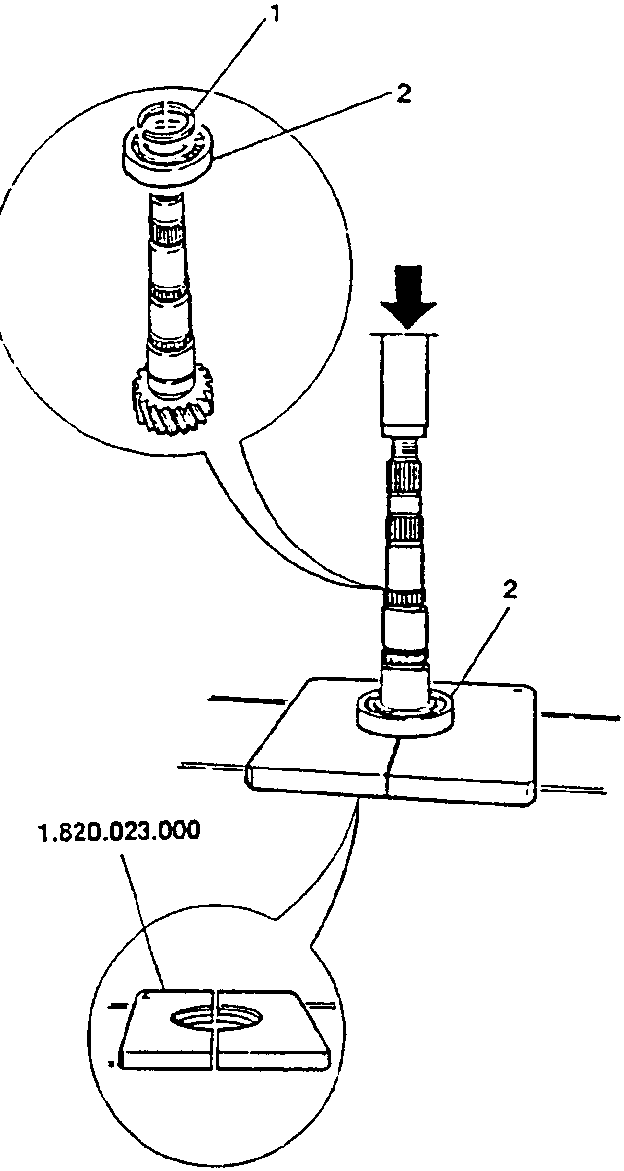

1. Front bearing
2. Press tool 1.820.023.000
