Gearbox and differentialLayshaft reassembly · page 2 of 2

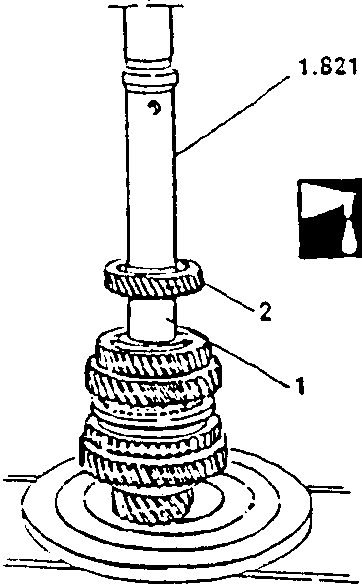

  1. Install spacer.
  2. Using a press and suitable tool, install 4th speed driven gear.
Diagram showing installation of spacer and 4th speed driven gear with part numbers 1 and 2 indicated.

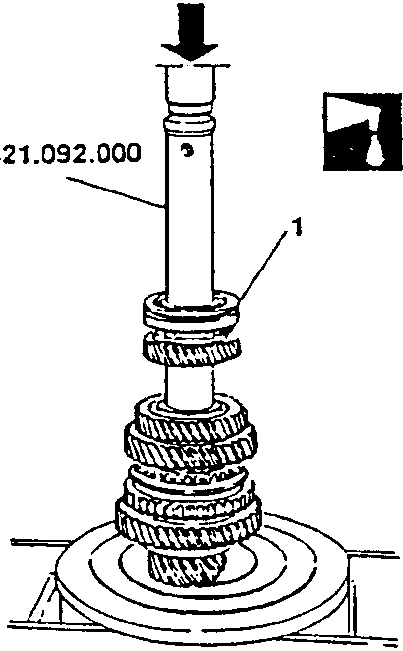

  1. Using a press and suitable tool, install rear bearing.
Diagram showing installation of rear bearing with part number 1 indicated.
