Main shaft disassembly

Make

Alfa Romeo

Model

155 Factory Service Manual

Year

1992–1998

Section

Main shaft disassembly › Main shaft disassembly

Gearbox and differentialMain shaft disassembly · page 1 of 2

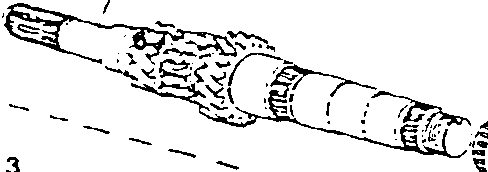

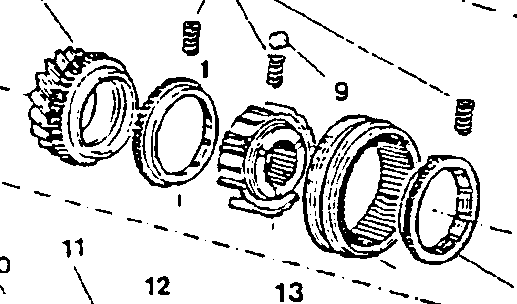

1. Main shaft
2. 3rd speed gear roller bearing
3. 3rd speed drive gear
4. 3rd speed synchronizer ring
5. Hub for 3rd-4th speed sliding sleeve
6. 3rd-4th speed sliding sleeve
7. 4th speed synchronizer ring
8. Springs for 3rd-4th speed
9. Rollers for 3rd-4th speed hub
10. Bush for 4th speed drive gear
11. Roller bearing for 4th speed drive gear
12. 4th speed drive gear
13. Flexible ring
14. Rear bearing
15. Bush for 5th speed drive gear
16. Roller bearing for 5th speed drive gear
17. Springs for 5th speed hub
18. Rollers for 5th speed hub
19. 5th speed drive gear
20. 5th speed synchronizer ring
21. Hub for 5th speed engagement sliding sleeve
22. 5th speed engagement sliding sleeve
23. Flange securing 5th speed synchronizer rollers and springs
24. Nut securing gears to main shaft.
