REASSEMBLY

  1. Install the ring gear and tighten the screws to the prescribed torque.

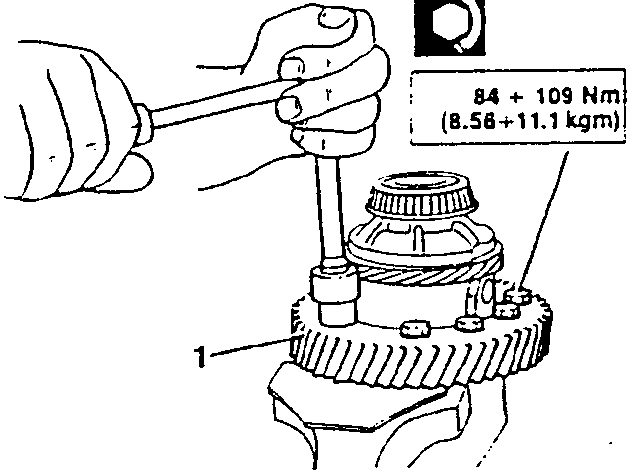

Hand using a wrench to tighten bolts on a ring gear assembly. Torque specification box shows 84 ÷ 109 Nm (8.56+11.1 kgm). Part number 1 points to the ring gear.

84 ÷ 109 Nm
(8.56+11.1 kgm)

  1. Install the odometer idle control gear after gradually heating it from ambient temperature to approximately 100° - 120°C in an oven.
  2. Using tool No. 1.821.062.000 install the differential casing support roller bearings.

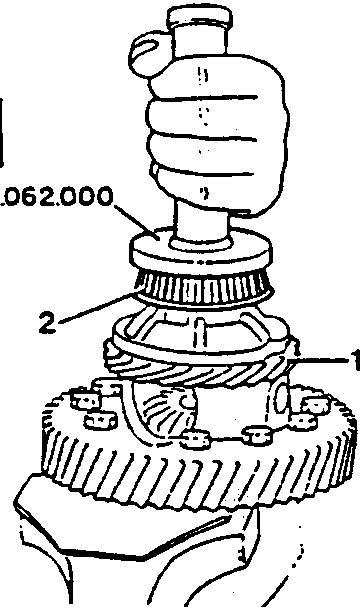

Hand using tool No. 1.821.062.000 to press a component onto a ring gear assembly. Part number 2 points to the tool, part number 1 points to the ring gear.

Install the differential assembly by reversing the procedures used for disassembly taking care to correctly determine the pre-load thickness of the bearings (see: DIFFERENTIAL ADJUSTMENT).
