MAIN SHAFT REASSEMBLY

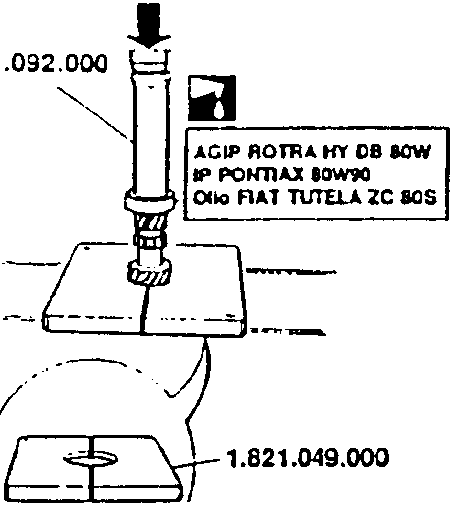

  1. Using a press and suitable tool, install front bearing.
  2. Install 3rd speed drive gear roller bearing.
Diagram showing installation of front bearing with specified lubricants and part numbers 1.821.092.000 and 1.821.049.000

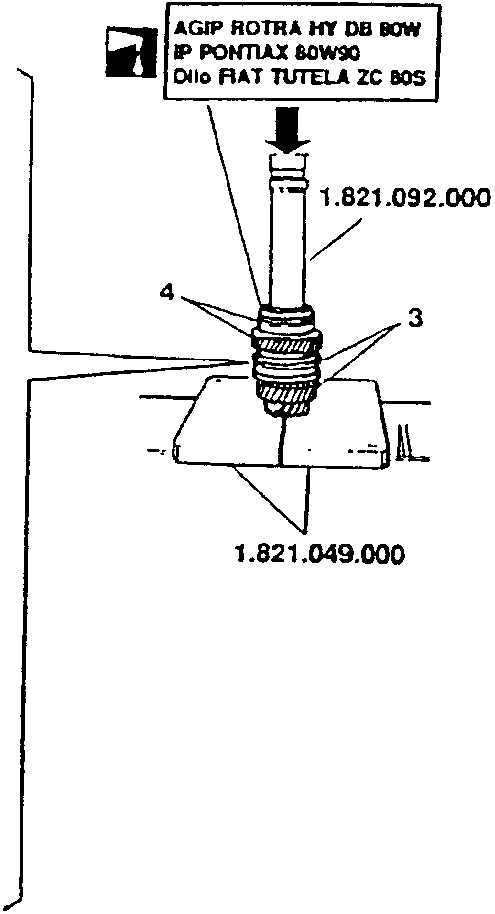

  1. Install 3rd speed drive gear (3A) and 3rd - 4th speed engagement sleeve assembly (3B) together with hub (3C) and 4th (3D) and 3rd (3E) speed synchronizer rings.
  2. Install 4th speed drive gear (4B) with relative roller bearing (4C) and bushing (4D), then using a press and suitable tool, install the rear bearing (4A).
Diagram showing assembly of gears and bearings with specified lubricants and part numbers 1.821.092.000 and 1.821.049.000
Diagram showing a shaft assembly with part number 1.821.049.000
