Gearbox and differentialRemoval · page 2 of 2
- Remove odometer gear.

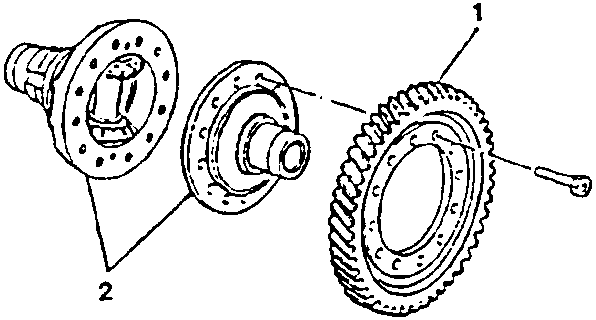

- Remove differential casing crown gear.

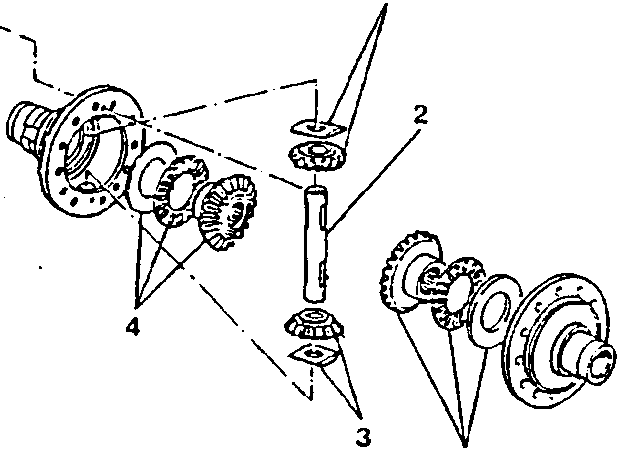

- Remove the spring pin securing side pinion shaft.
- Remove side pinion shaft from casing half.
- Remove side pinions and relevant shoulder washers.
- Remove crown wheels from casing halves together with roller cages and shim rings.
