Refitting
- Make
- Alfa Romeo
- Model
- 155 Factory Service Manual
- Year
- 1992–1998
- Section
- Air mixing vent › Refitting
Heating and ventilationRefitting

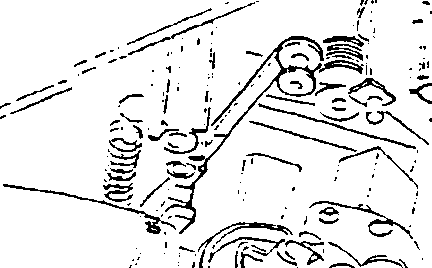

- Loosen the screws securing the actuator to the air mixing vent and remove the vent.

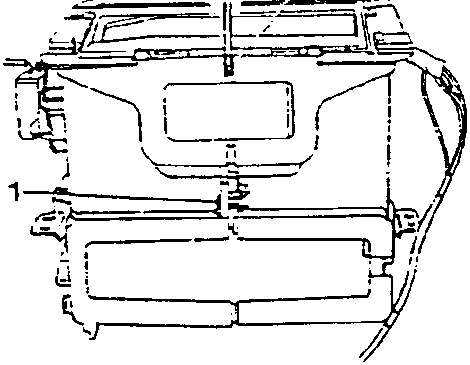

- Loosen the screws securing the two casing halves of the heating-distribution unit.
- Using a screwdriver as a lever separate the two casing halves.
- Loosen the screw and remove the air mixing vent control lever.

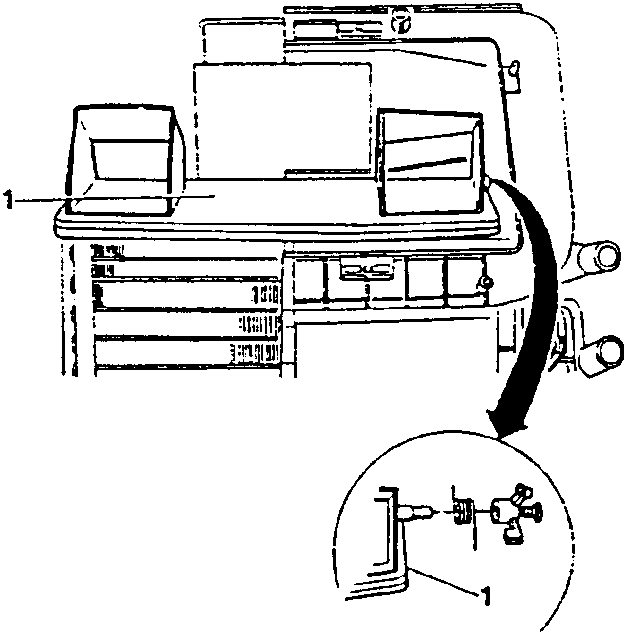

- Remove the air mixing vent and relative springs.
Refitting
To refit, reverse the procedure followed for removal.
