Compressor (Model 1.8 - 2.0 TS) › Removal
Heating and ventilationRemoval

Removal

  1. With the vehicle positioned on a lift, remove the front right-hand wheel.
  2. Using tool No. 1.823.015.000 remove the plastic buttons securing the walling between the wheel arch and the engine compartment.
  3. Remove the walling.
Diagram showing removal of plastic buttons with tool 1.823.015.000 and removal of walling component 3.
  1. Loosen the screw securing the alternator to the belt tensioner.
  2. Loosen the screw securing the alternator to the lower support.
  3. Loosen the screw securing the belt tensioner to the motor.
  4. Adjust the belt tensioner regulation screw in order to pull out and remove the alternator and compressor drive belt.
  5. Remove the pulley.

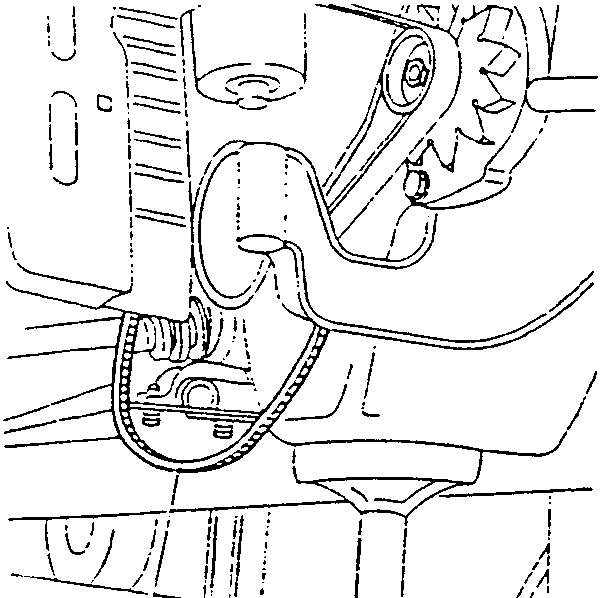

Diagram showing removal of compressor drive belt.

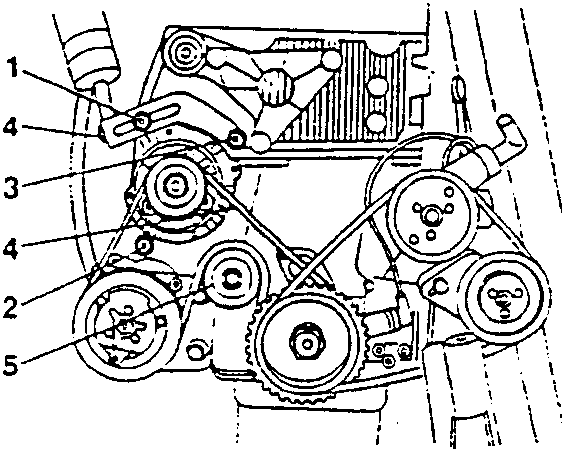

Diagram showing belt tensioner and pulley components 1, 2, 3, 4, 5.
