Electric fan › Removal
Heating and ventilationRemoval

Removal

  • Working through the compartment below the dashboard, on the right-hand side, proceed as follows.
  1. Using a thin-bladed screwdriver raise the tab.
  2. Rotate the rear block of the fan a few degrees anticlockwise.
  3. Disconnect the electric fan power supply connector.
  4. Remove the fan block.

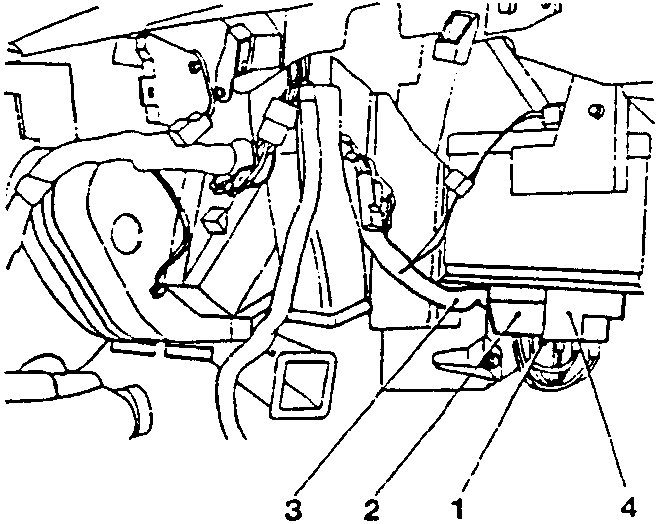

Diagram showing components with numbered parts 1, 2, 3, 4.
  1. Using a screwdriver, press the three rubber clips on the fan and remove the cover.

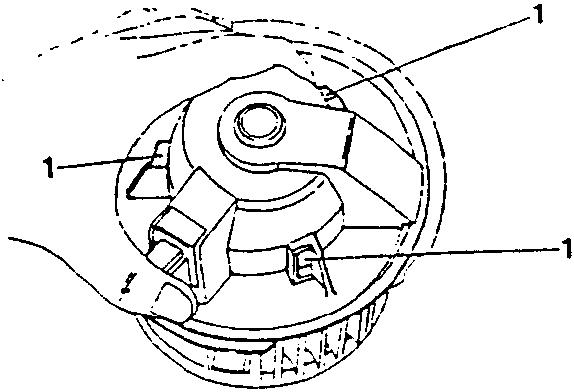

Diagram showing a circular component with part 1 indicated.

Refitting

To refit, reverse the procedure followed for removal.

ELECTRONIC FAN-SPEED VARIATOR WITH BUILT-IN TEMPERATURE SENSOR

Removal

  • Working through the compartment below the dashboard, on the right-hand side, proceed as follows.
  1. Disengage the two electrical connectors from the variator.
  2. Loosen the two screws securing the variator to the lower part of the heating-distribution unit in the housing indicated by the arrow.
  3. Remove the variator.

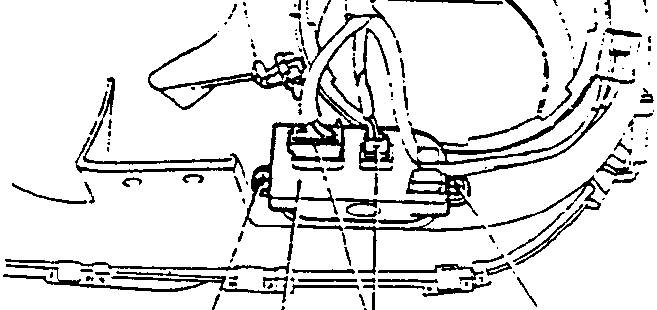

Diagram showing components with numbered parts 1, 2, 3.

Detail of the variator

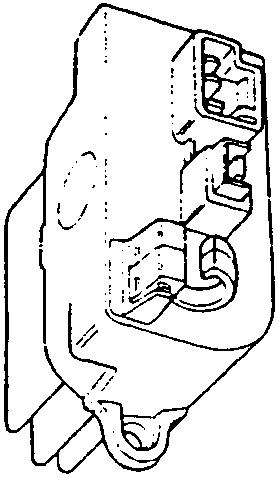

Diagram showing a variator unit with part 1 indicated.

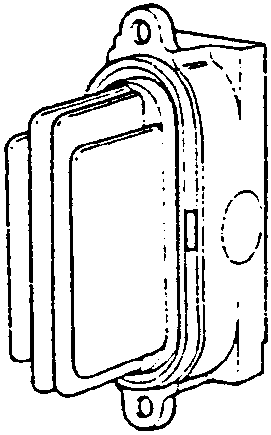

Diagram showing a variator housing with part 1 indicated.
