ELECTRONIC CONTROL UNIT

Removal

  1. Remove the ashtray.
  2. Loosen the three screws securing the Check Panel.
  3. Pull out the Check Panel.
  4. Disconnect the connectors and remove the Check Panel.

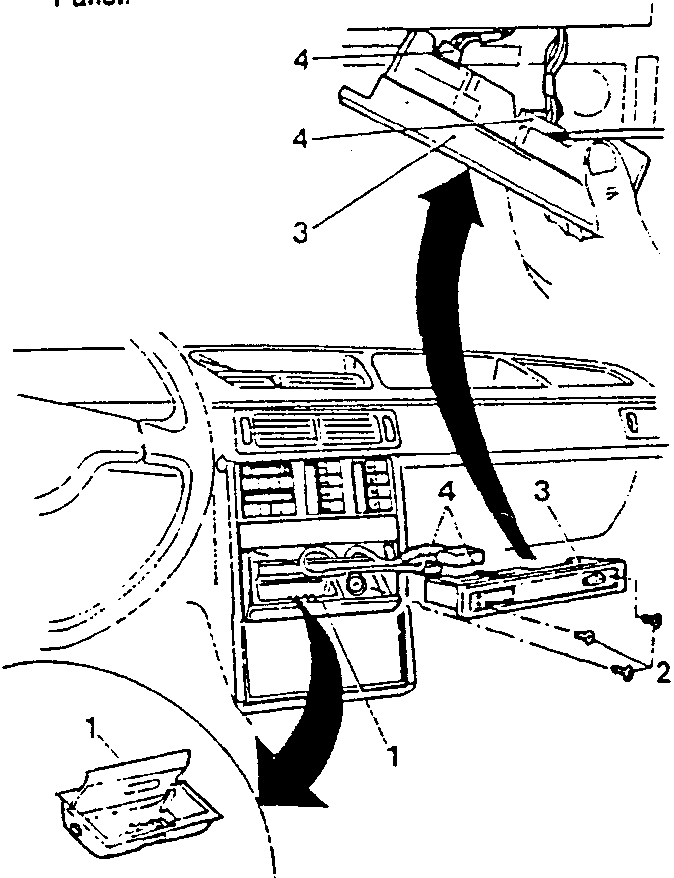

Diagram showing removal of check panel and ashtray from central console.
  1. Check Panel
  2. Ashtray
  3. Control Unit
  4. Screws

Refitting

To refit, reverse the procedure followed for removal.

Supplementary Information regarding refitting

  • Tighten the screws to the correct torque.

Removal (continued)

  1. Loosen the two screws securing the control unit to the front covering of the central console.
  2. Disconnect the three connectors from the control unit.
  3. Remove the control unit.

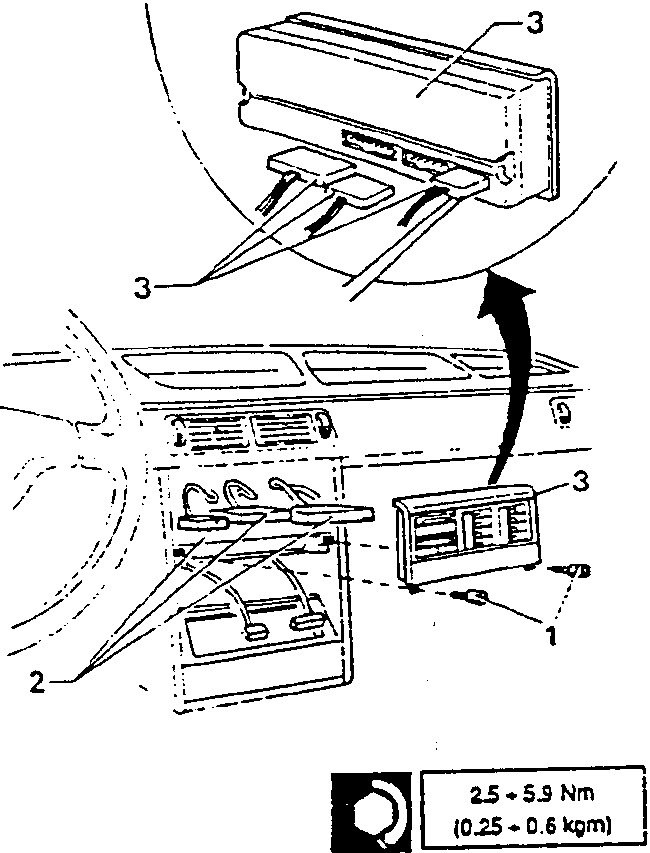

Diagram showing removal of control unit from central console.

2.5 ÷ 5.9 Nm
(0.25 ÷ 0.6 kgm)
