Alfa Romeo 155 Factory Service Manual (1992-1998)65 · Heating and ventilation
65 · Heating & A/C

Refitting

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
External air temperature sensor › Refitting
Heating and ventilationRefitting
  1. Withdraw the sensor from the inside.
  2. Disconnect the connecting cables.
  3. Remove the sensor.

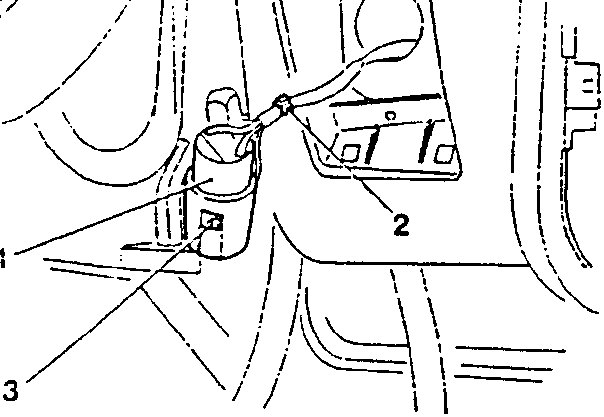

Diagram showing the external air temperature sensor location near the left-hand door mirror, with labeled parts 2 and 3.

Refitting

To refit, reverse the procedure followed for removal.

EXTERNAL AIR TEMPERATURE SENSOR

  • This sensor forms part of the left-hand door mirror. If the sensor is faulty it is necessary to replace the entire group (see GROUP 40).
