Memory control

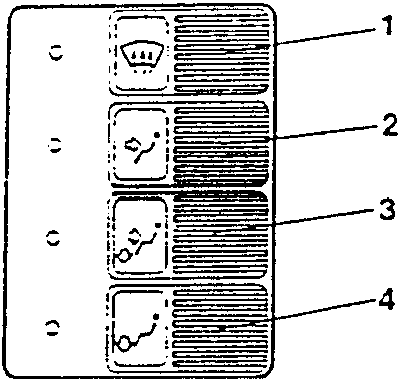

9. Press buttons 1 - 4 in succession. For each button the relative led should come on and a sequence of codes should appear on the upper display until they remain stationary for each button. This will indicate a specific position of the air distribution vents.

The codes connected to each button are given in the table below.

After this last self-diagnosis operation press the AUTO button to return the system to normal operation.

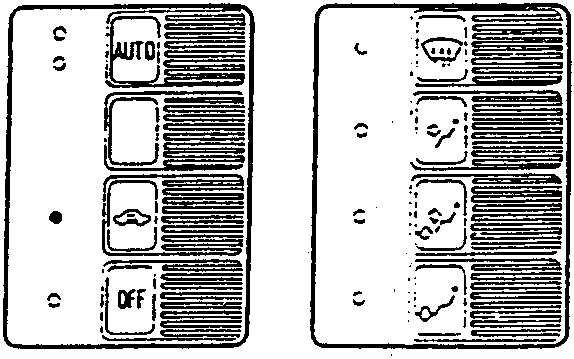

MEMORY CONTROL

1. Turn the ignition key to the MAR position.
2. Press the AUTO button.
3. Repeatedly press the right-hand TEMP button until the lower display, electric fan speed, shows the letters HI.

4. Press the right-hand AIR button until the maximum speed of the electric fan is reached and 8 bars appear on the lower display.
5. Press the recirculation button and one of the buttons of the right-hand column, different from that selected automatically.
6. Turn the ignition key to the STOP position and then, after a few moments, return it to the MAR position. The previously selected settings which have been memorized must return to the operational state without variation, i.e., the set temperature HI, maximum fan speed, air recirculation and a certain distribution.
