Heating and ventilationRemoval

Removal

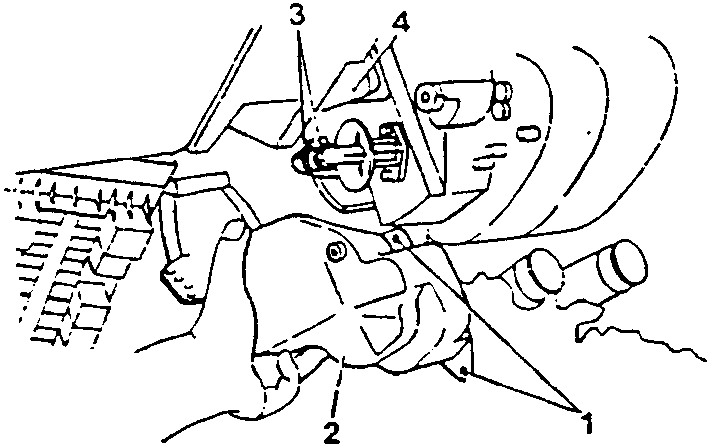

  1. Loosen the two screws securing the cover to the heating/cooling radiator to the left of the conveyor assembly (driver's side).
  2. Remove the cover.
  3. Loosen the two clamps securing the engine coolant inlet hose to the tap.
  4. Loosen the three screws securing the actuator to the assembly and remove the assembly.
Diagram showing heating/cooling radiator with labeled parts 1, 2, 3, 4.

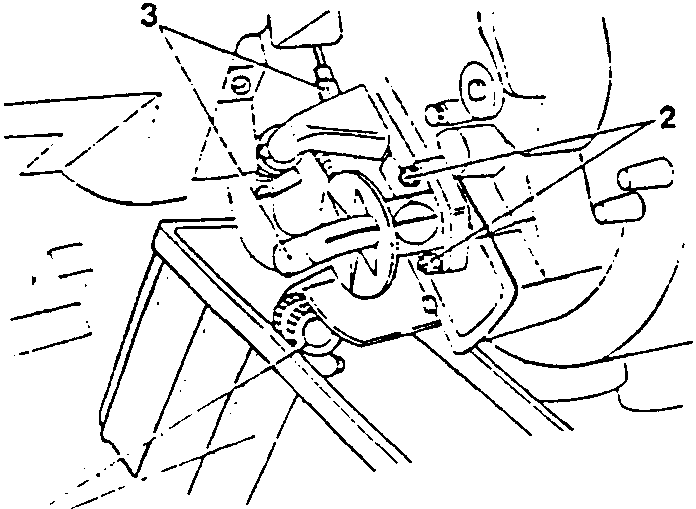

  1. Disconnect the hose from the tap taking care not to spill any fluid. Use a container to catch any drips.
  2. Loosen the two nuts securing the tap to the radiator.
  3. Remove the tap together with the relative control levers.
Diagram showing tap and control levers with labeled parts 1, 2, 3.

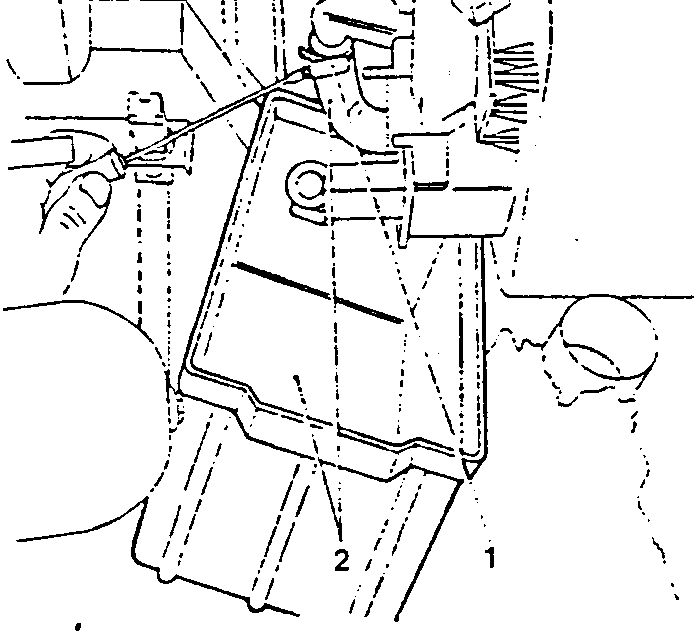

  1. Loosen the clamp securing the upper engine coolant from radiator outlet hose.
  2. Disconnect the hose taking care not to spill any fluid. Use a container to catch any drips.
Diagram showing upper engine coolant hose and clamp with labeled parts 1, 2.

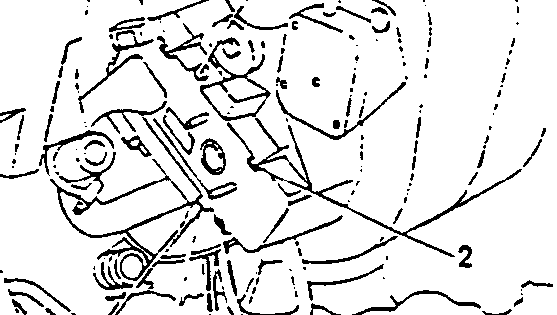

  1. Loosen the two screws securing the heating/cooling radiator to the assembly.
  2. Uncclip the retaining tabs.
Diagram showing retaining tabs and screws with labeled parts 1, 2.
