Lower air distribution vent (page 2 of 2)
- Make
- Alfa Romeo
- Model
- 155 Factory Service Manual
- Year
- 1992–1998
- Section
- Lower air distribution vent
Heating and ventilationLower air distribution vent · page 2 of 2

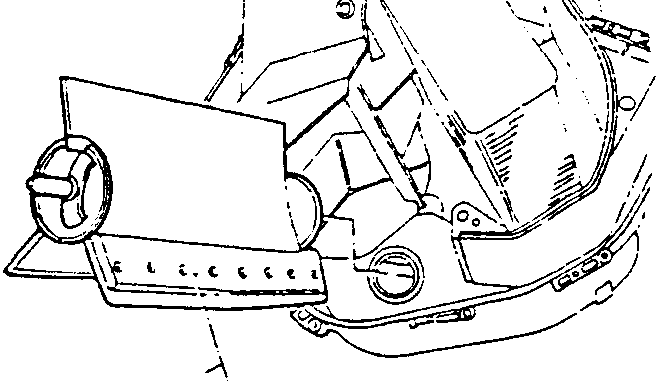

- Remove the vent
Refitting
To refit, reverse the procedure followed for removal.
Supplementary Information regarding refitting
- Gear (B) of the lower air distribution vent is directed by the sector wheel (A) which is in turn moved by the relative control line (C).
- When reassembling the heating-distribution unit, the raised white part on the sector wheel must be aligned to that on the gear forming part of the lower air distribution vent.
