Removal (page 2 of 2)
- Make
- Alfa Romeo
- Model
- 155 Factory Service Manual
- Year
- 1992–1998
- Section
- Lower air distribution vent
Heating and ventilationRemoval · page 2 of 2
- Loosen the screws and remove the side outlets (three for each outlet).

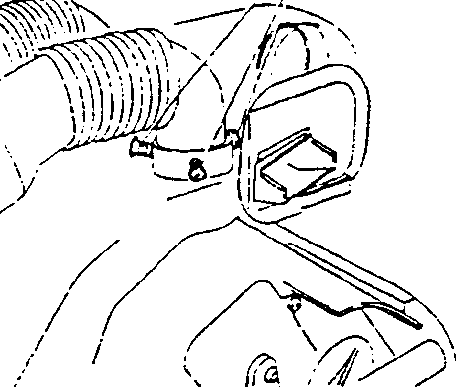

- Loosen the three screws securing upper part of the tube carrying air to the tunnel outlets.

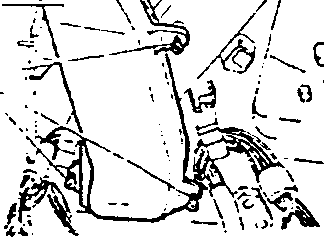

- Remove the tube.

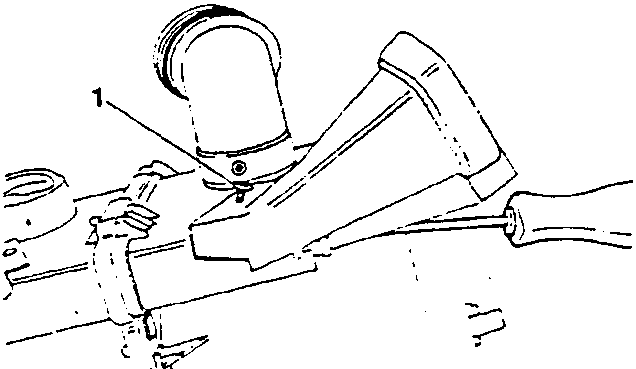

- Loosen the two screws and remove the right-hand side outlet.

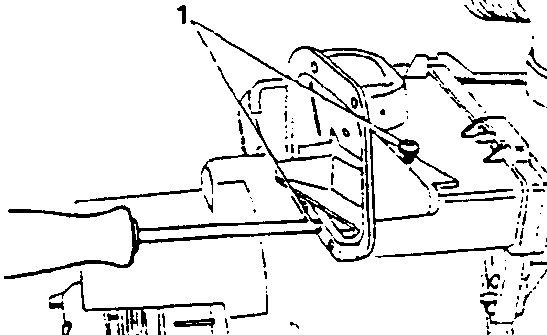

- Loosen the two screws and remove the left-hand side outlet.

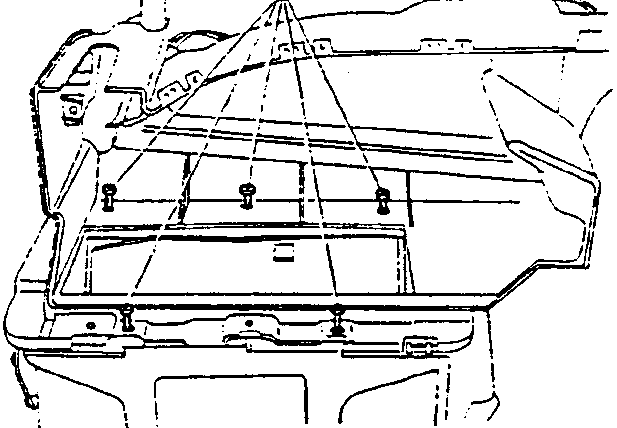

- Loosen the five screws securing the lower part of the conveyor to the heating-distribution unit and remove the unit.
