Ignition coil › Removal/refitting
Ignition, starting and charging (V6)Removal/refitting

REMOVAL/REFITTING

  • Disconnect the negative cable from the battery.

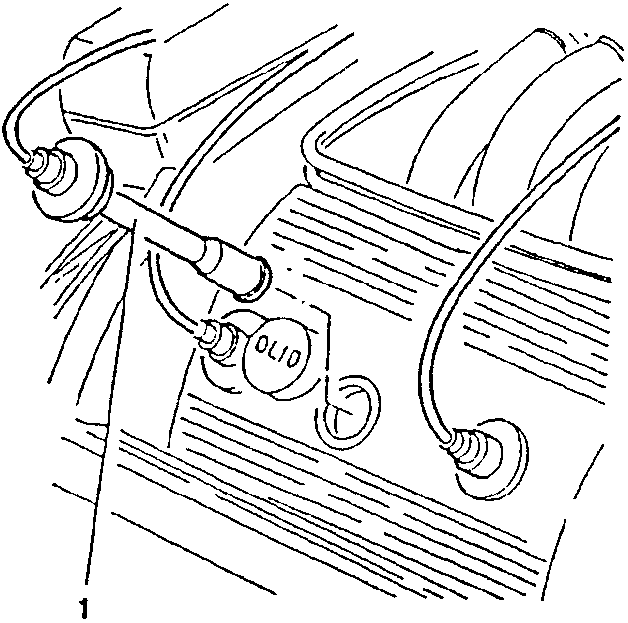

  1. Disconnect the high voltage cables from the spark plugs.
High voltage cables disconnected from spark plugs
  1. Disconnect the electrical connection from the ignition coil.
Electrical connection disconnected from ignition coil

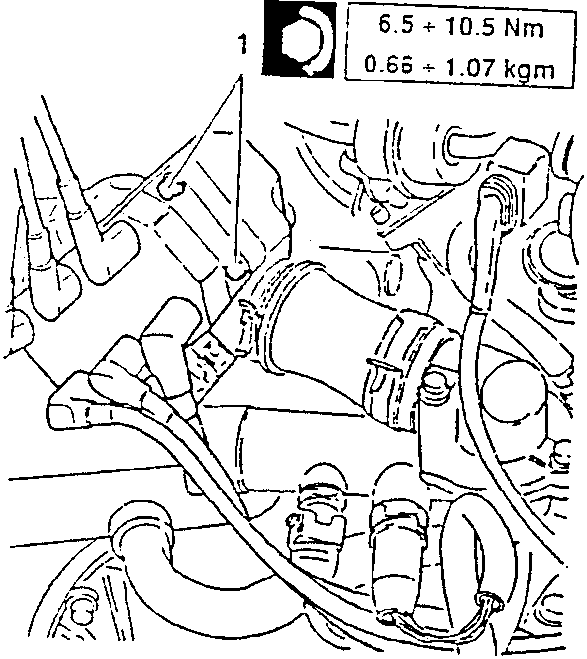

  1. Unscrew the screws securing the ignition coil to its support.
Ignition coil secured with screws

6.5 ÷ 10.5 Nm
0.66 ÷ 1.07 kgm

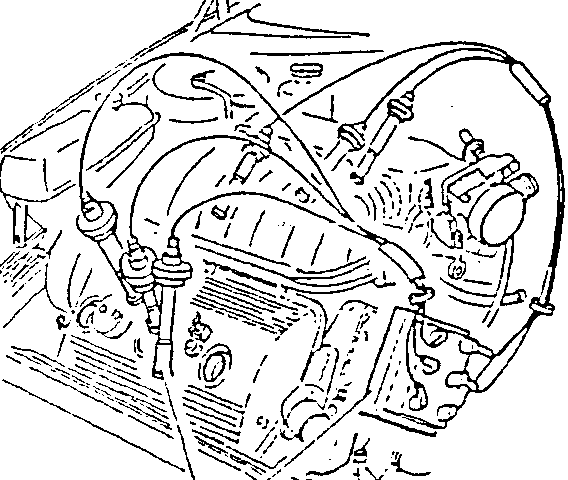

  1. Remove the ignition coil together with the spark plug cables.
  • If necessary separate the spark plug cables from the ignition coil on a bench.
Ignition coil removed with spark plug cables
