Alfa Romeo 155 Factory Service Manual (1992-1998)59 · Instrument panel and electronic instruments
59 · Electrical

Removal and refitting

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Bulb replacement › Removal and refitting
Instrument panel and electronic instrumentsRemoval and refitting

REMOVAL AND REFITTING

Removal

  1. Loosen the two screws securing the central covering.
  2. Disconnect the electrical connectors.
  3. Remove the instrument panel.

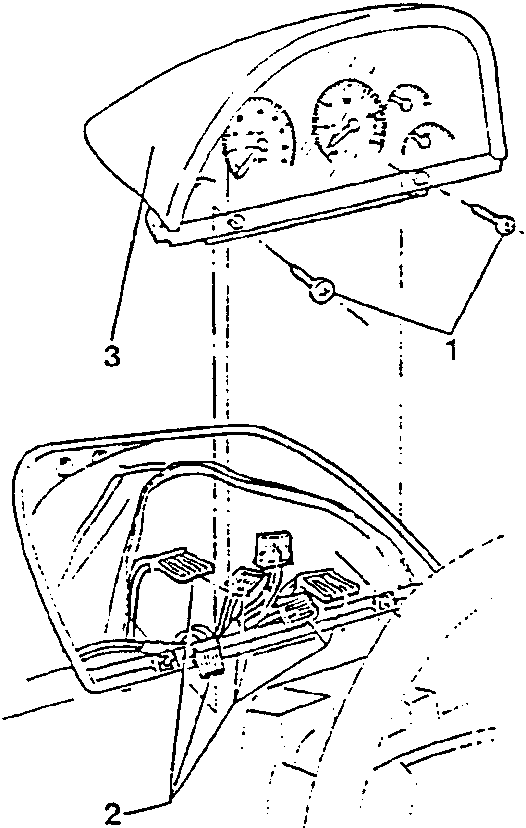

Instrument panel removal diagram showing screws, connectors and panel
  1. Part 1
  2. Part 2
  3. Part 3

Refitting

To refit, reverse the procedures followed for removal.

BULB REPLACEMENT

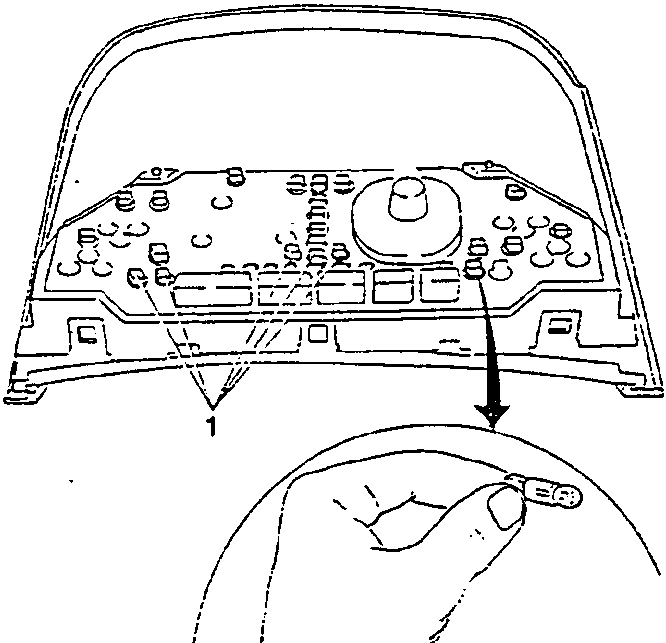

  1. Working from the rear of the instrument panel it is possible to replace all the bulbs. To extract them, rotate anticlockwise.
Diagram showing hand rotating a bulb socket anticlockwise
