Alfa Romeo 155 Factory Service Manual (1992-1998)59 · Instrument panel and electronic instruments
59 · Electrical

Electronic instrument cluster (page 2 of 2)

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Electronic instrument cluster
Instrument panel and electronic instrumentsElectronic instrument cluster · page 2 of 2

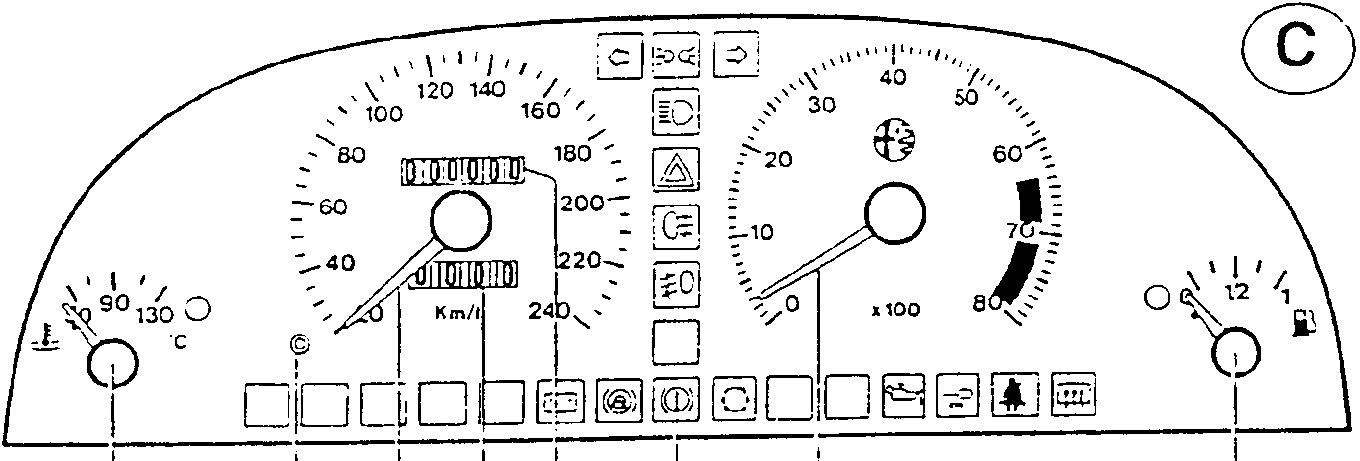

Instrument panel cluster C with labeled components
  1. Engine coolant temperature gauge
  2. Oil temperature gauge (not included in cluster C)
  3. Trip meter reset
  4. Speedometer
  5. Trip meter
  6. Mileage recorder
  7. Services warning lights (see details on next page)
  8. Rev counter
  9. Engine oil pressure gauge (not included in cluster C)
  10. Fuel level gauge

N.B.: The different engines also differ with regard to the ratings on the speedometer and rev counter.

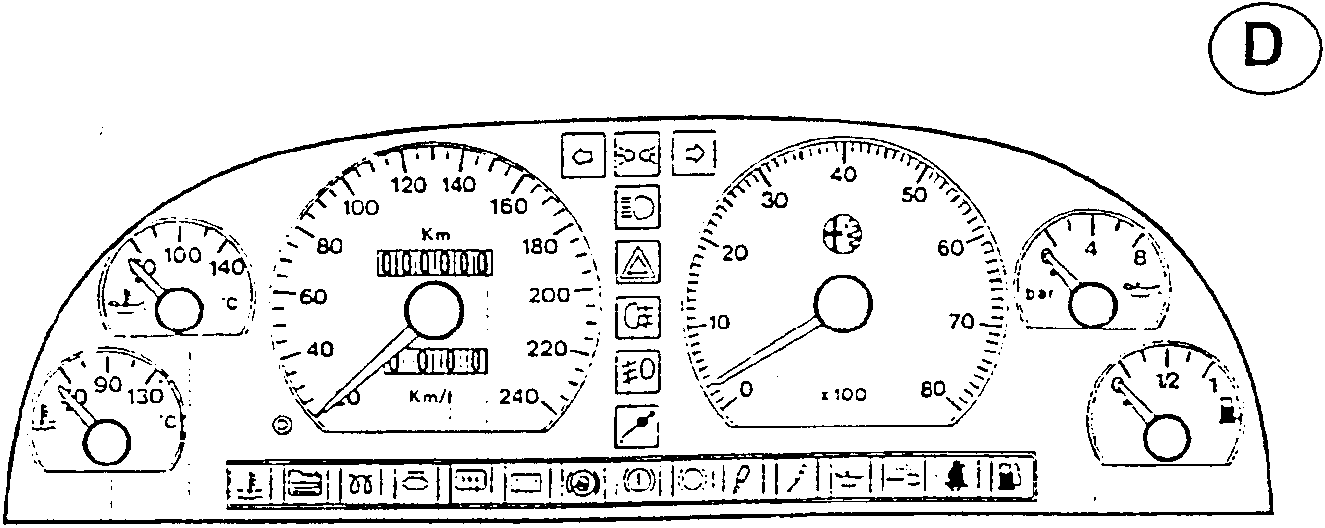

Car dashboard instrument cluster layout diagram
