Interior trim (page 2 of 2)

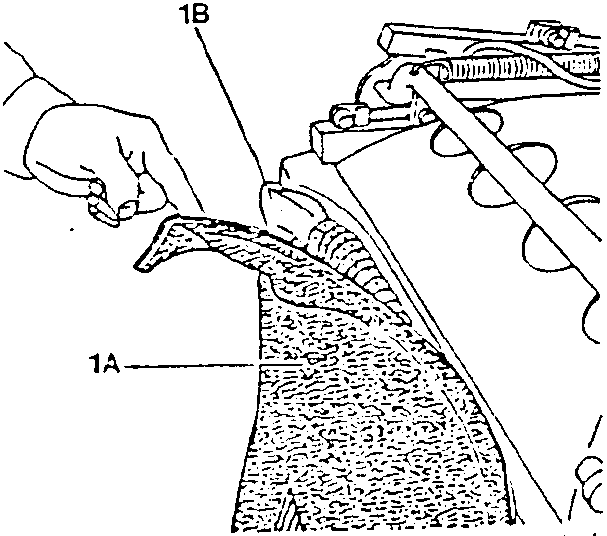

1. Wind the lower part of the rear covering of the backrest (A) in order to permit work to the lower part of the underlying front covering (B).

1. Free the metal profile securing the lower part of the front covering of the backrest (A) from the structure of the seat and withdraw the rear covering (B) until the backrest stiffening device control has been overcome.

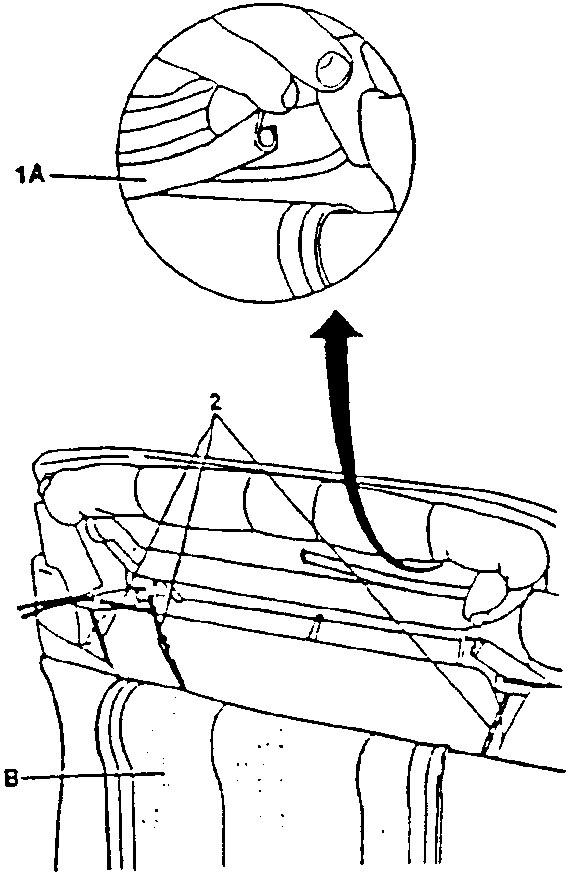

2. Disconnect the clips from the elastic bands, cables and tie rods which confer shape to the covering.

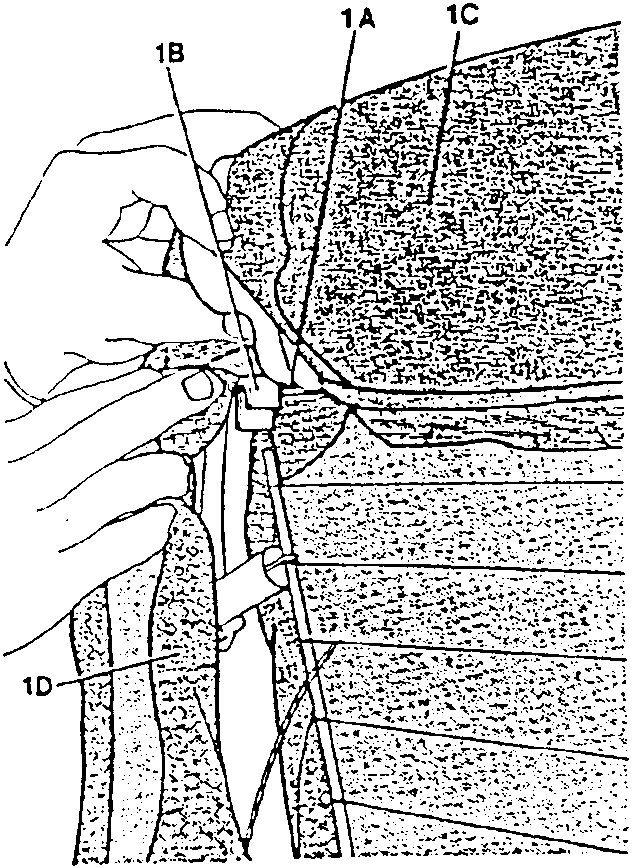

1. Disconnect the rear tensioning bar (A) in the upper part of the covering from the retaining hook (B) and then completely withdraw the covering (C) together with the synthetic material (D)

WARNING: When removing the heater, operate extremely carefully when removing the foam layer in order to avoid damaging the electrical resistance contained within it.

1. If necessary remove the backrest heater (A) after disconnecting the heater from the cushion (B).
