Replacing covering

When refitting reverse the procedure followed for removal and:

• for components and/or parts dealt with in other pages of the group or in other groups, refer to the relative advice for refitting operations (see COMPLETE SEAT).

Replacing covering

• Remove the armrest (see REMOVAL AND REFITTING).

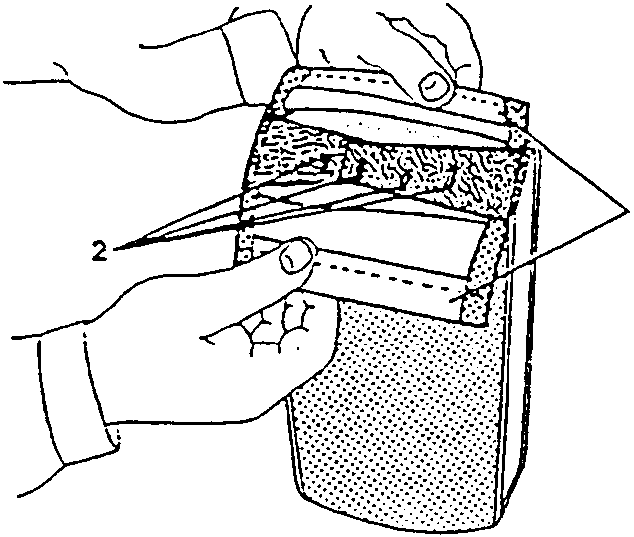

1. Pull apart the two ends of the armrest covering.
2. Remove the metal clips securing the covering to the padding and withdraw the covering together with the synthetic material below.

Refit by reversing the procedure followed for removal and:

• correctly position the synthetic material in order to facilitate refitting of the cloth covering and to ensure that the intrinsic anti-creaking qualities of the synthetic material performs its function.
• After refitting ensure that there are no folds and/or creasing in the covering and model the material over the padding if necessary.

DEVICE CONTROLLING SLIDING OF SEAT (Manual version)

Removal and refitting

• Remove the seat and take it to a bench (see COMPLETE SEAT).

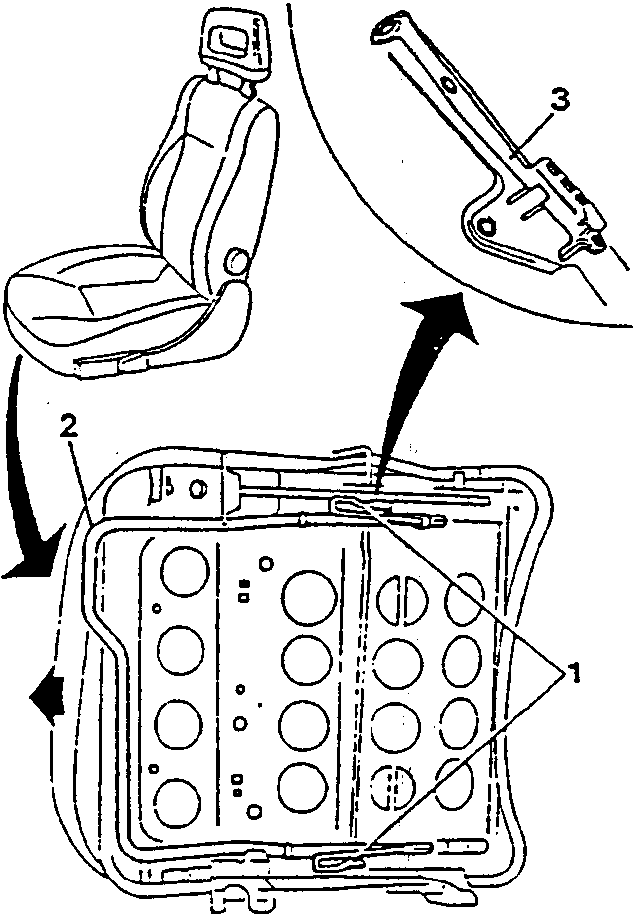

1. Free the clips securing the guide rails sliding device control.

WARNING: Pay particular attention when performing this operation.

1. Withdraw the rod from the slide control device.
2. Bend the clip and remove the mechanism locking the guide rails sliding device.

When refitting reverse the procedure followed for removal and:

• for components and/or parts dealt with in other pages of the group or in other groups, refer to the relative procedures and advice for refitting operations (see COMPLETE SEAT).
