Front seat guide rails (Electric version) › Removal and refitting
Interior trimRemoval and refitting

Removal and refitting

  • Remove the seat and take it to a bench (see COMPLETE SEAT - REMOVAL AND REFITTING).
  • Remove the seat belt attachment (see SEAT BELT ATTACHMENT - REMOVAL AND REFITTING).
  1. Loosen the three screws securing the moulding to the seat and remove the moulding.

WARNING: Operate with care when removing the moulding to avoid damaging the underlying wiring.

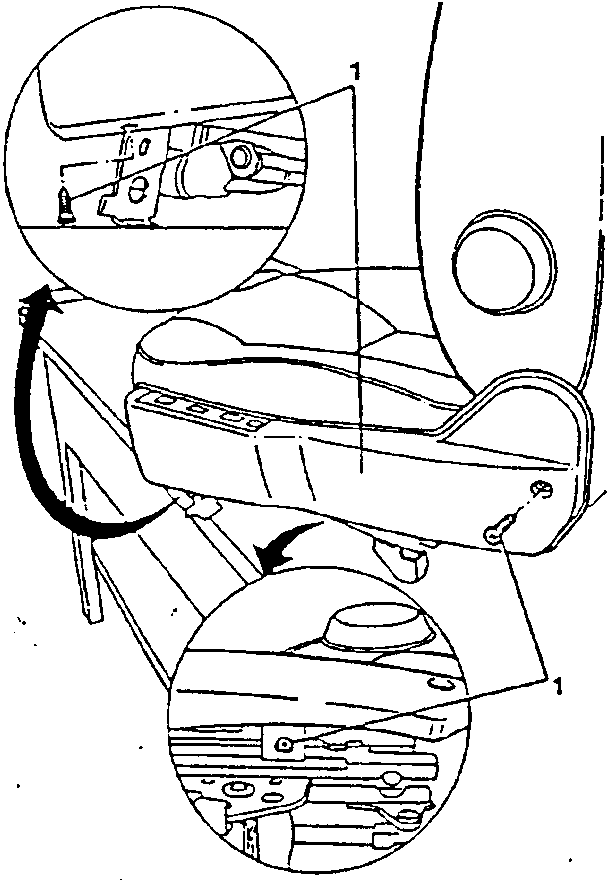

Close-up view of seat guide rail mechanism showing screws and mounting points.
  1. Disconnect the two parts of the main power supply connector for the motors (YELLOW).
  2. Withdraw from the main power supply connector for the motors (YELLOW) the pins relative to the backrest tilt regulation motors.

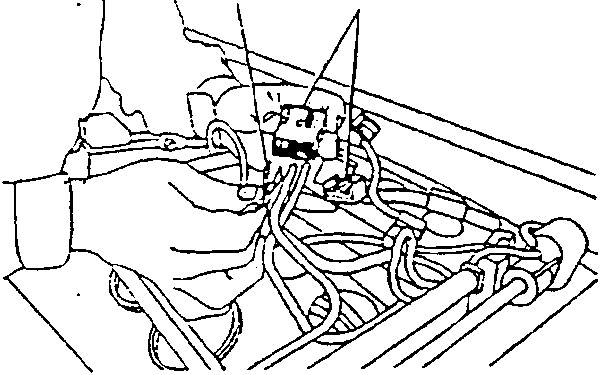

Diagram showing electrical connectors and wiring for seat motors.
  1. Power the electric motors sliding the seat forwards and position the guide rails so that access can be gained to the screws securing them to the structure of the seat.
  2. Loosen the four screws securing the guide rails to the structure of the seat.

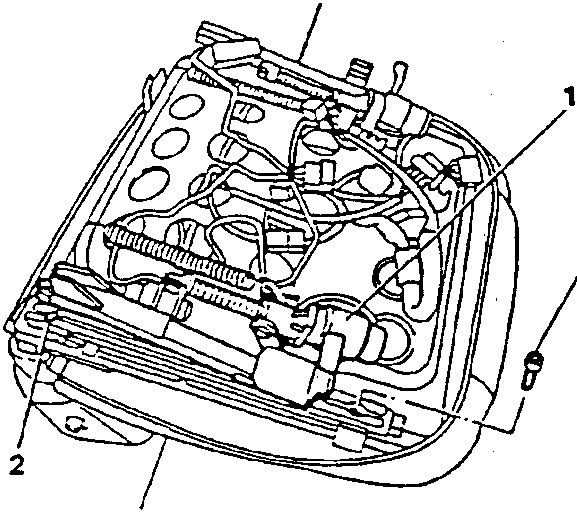

Diagram showing the internal components of the seat guide rail assembly.
