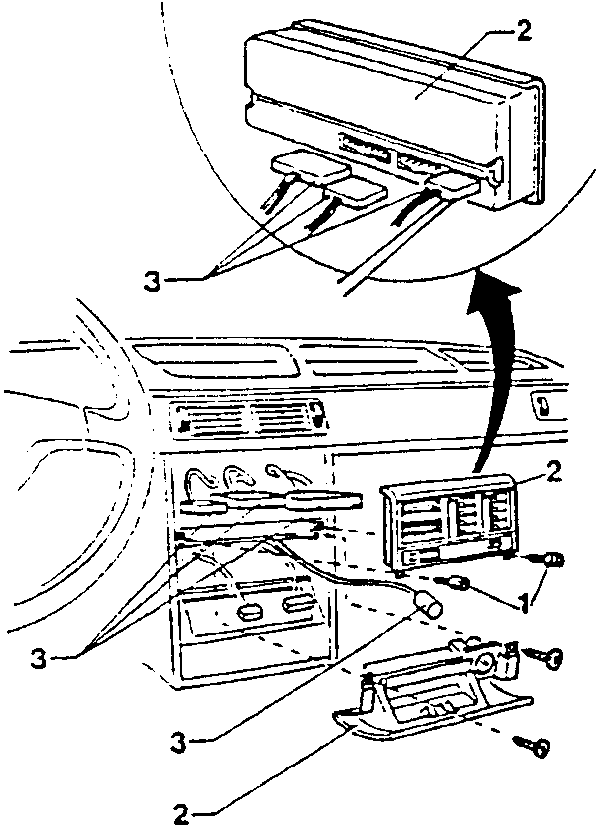

1. Unscrew the two screws securing the cigar-lighter/ashtray cover.
2. Remove the cigar-lighter/ashtray cover and pushbutton control unit.
3. Disconnect the three control unit connectors and the cigar-lighter connector.

6. Disconnect the boot release control connector and remove the boot lid release control/glovebox compartment lighting block.
7. Unscrew the five screws securing securing the underdashboard trim to the front crossmember.
8. Unscrew the screw securing the underdashboard trim to the crossmember.
9. Applying leverage with a screwdriver, remove the cover located on the dashboard.
10. Remove the cover and unscrew the screw securing the dashboard to the front crossmember.
11. Operating from the control unit compartment, unscrew the central screw securing the lower dashboard.
12. Remove the lower dashboard.

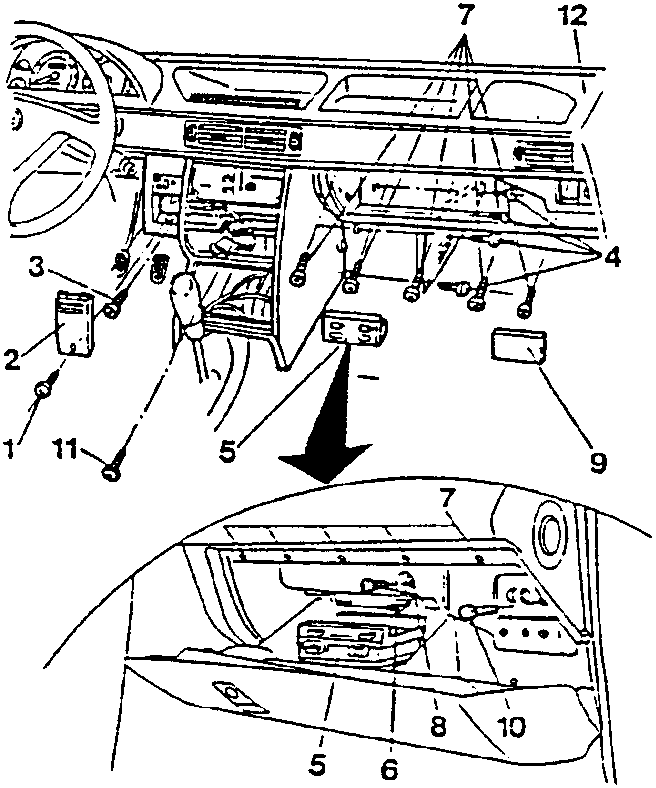

1. Unscrew the screw securing the passenger compartment temperature probe panel.
2. Remove the panel.
3. Unscrew the screw located in the temperature probe compartment which secures the lower dashboard trim to the front crossmember.
4. Unscrew the four screws (left side of console) securing the air vent moulding and remove the moulding.
5. Unscrew the four screws (right side of console) securing the air vent moulding and remove the moulding.
6. Open the glovebox.
7. Disconnect the four clips of the boot release control and glovebox compartment lighting and remove the control from its housing.
