Rear suspensionDescription

DESCRIPTION

The rear suspension, of the independent wheel type with longitudinal swinging arms, has been significantly reduced in size enabling as a consequence, the adoption

of a particularly low and wide luggage compartment. This type of suspension is common to all the vehicles in the 167 range. For the models equipped with controlled damping suspension, variable "setting" shock absorbers have been adopted (see: CONTROLLED DAMPING SUSPENSION) though the overall structure of the assembly remains unaltered.

Rear suspension component diagram for vehicle repair reference

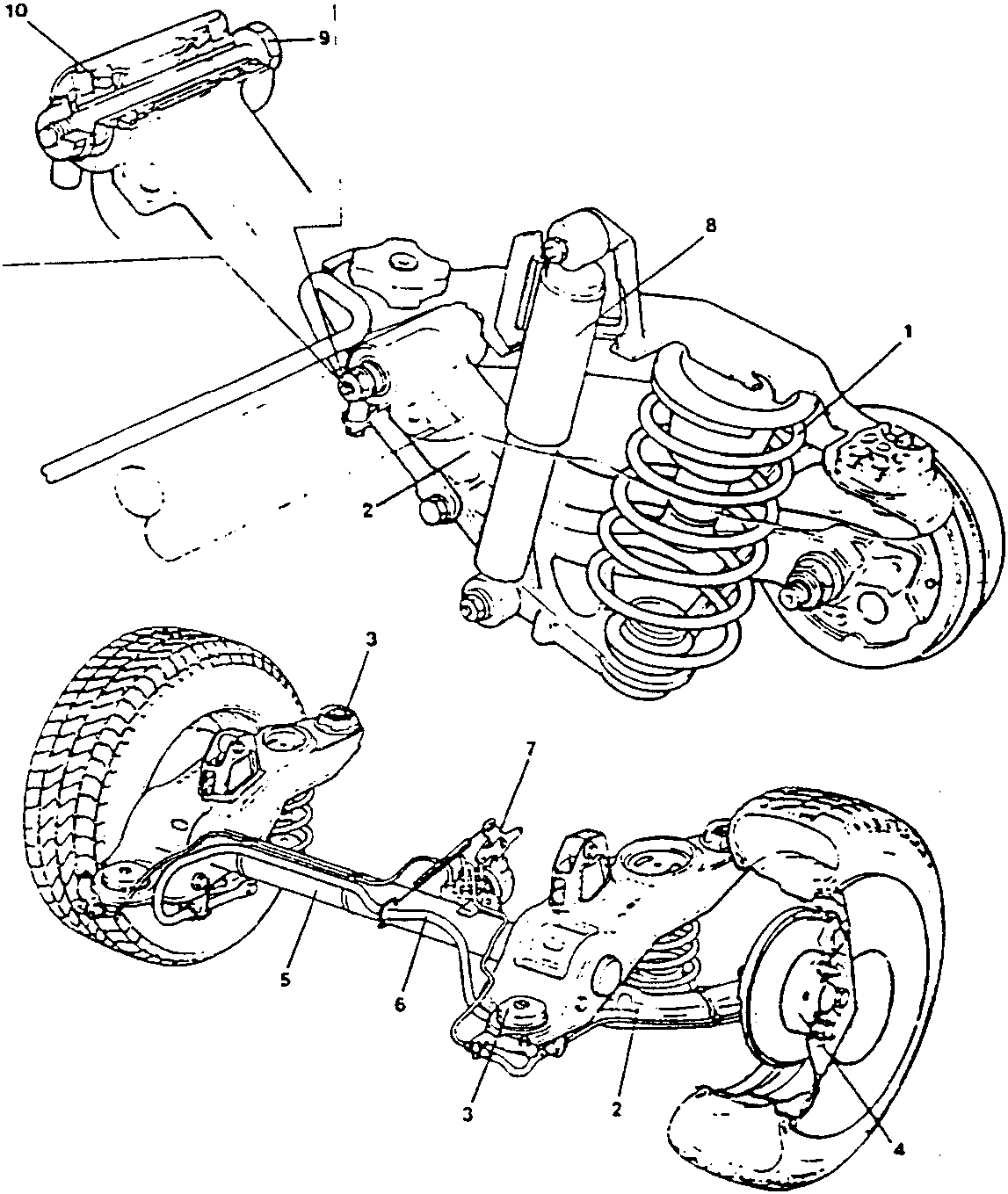

Rear suspension diagram showing components including helical spring, swinging arm, flexible plug, wheel hub, rear rigid axle, stabilizer bar, braking regulator, shock absorber, screw securing swinging arm, and tapered roller bearings.
  1. Helical spring
  2. Swinging arm
  3. Flexible plug
  4. Wheel hub
  5. Rear rigid axle
  6. Stabilizer bar
  7. Braking regulator
  8. Shock absorber
  9. Screw securing swinging arm
  10. Tapered roller bearings
