Steering box

Removal and refitting

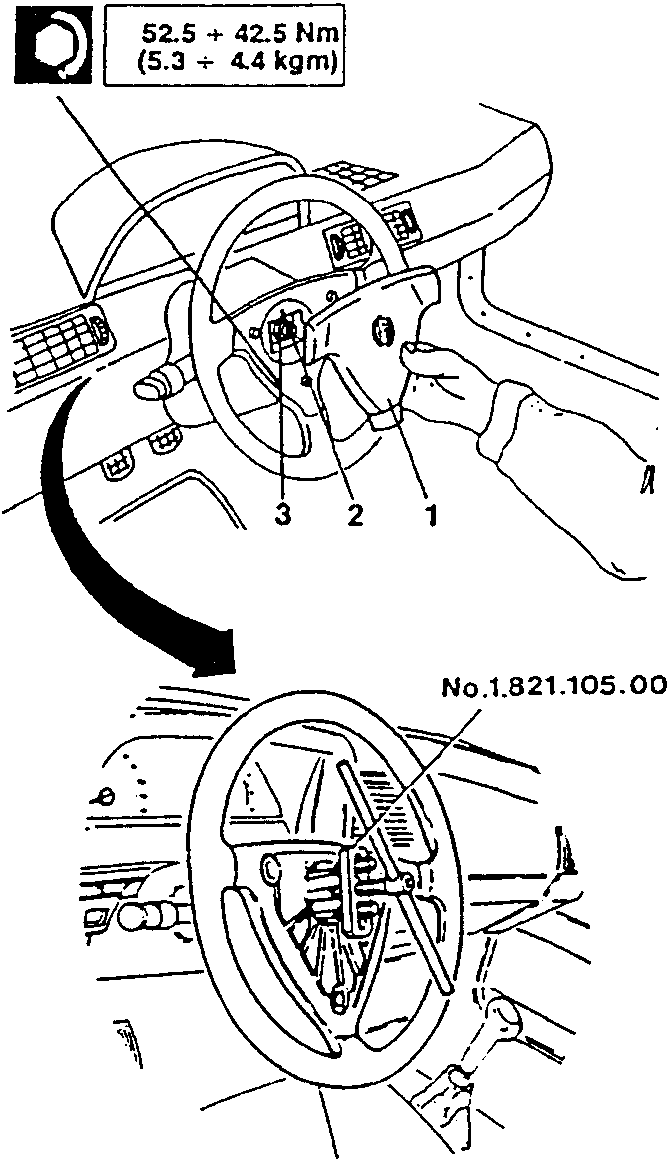

1. Using a screwdriver as a lever remove the horn button.
2. Disconnect the electrical wiring underneath.
3. Unscrew the nut securing the steering wheel.
4. Using tool No. 1.821.105.000 remove the steering wheel from the pin on the steering column.

Refit by reversing the procedure followed for removal and tighten the nut to the correct torque and position the steering wheel so that it is in the position shown in the illustration when the wheels are straight.

52.5 ÷ 42.5 Nm
(5.3 ÷ 4.4 kgm)

STEERING BOX

Removal and refitting

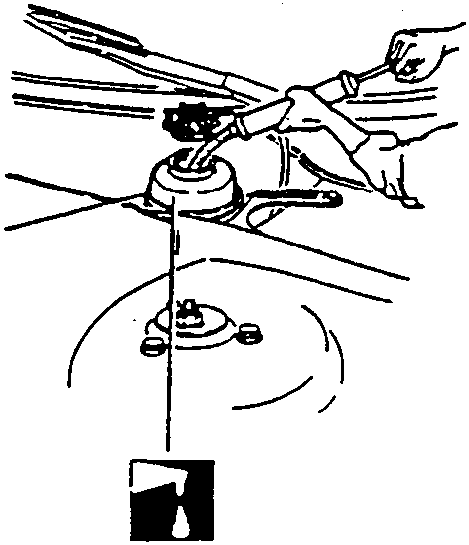

1. Using a syringe, empty the power steering fluid reservoir.
2. Unscrew the nut securing the tie-rod ball joint to the wheel hub.
3. Using tool No. 1.821.169.000 disconnect the ball joint from the hub.

• Place a container under the vehicle.
