Vehicle characteristics and maintenanceDimensions

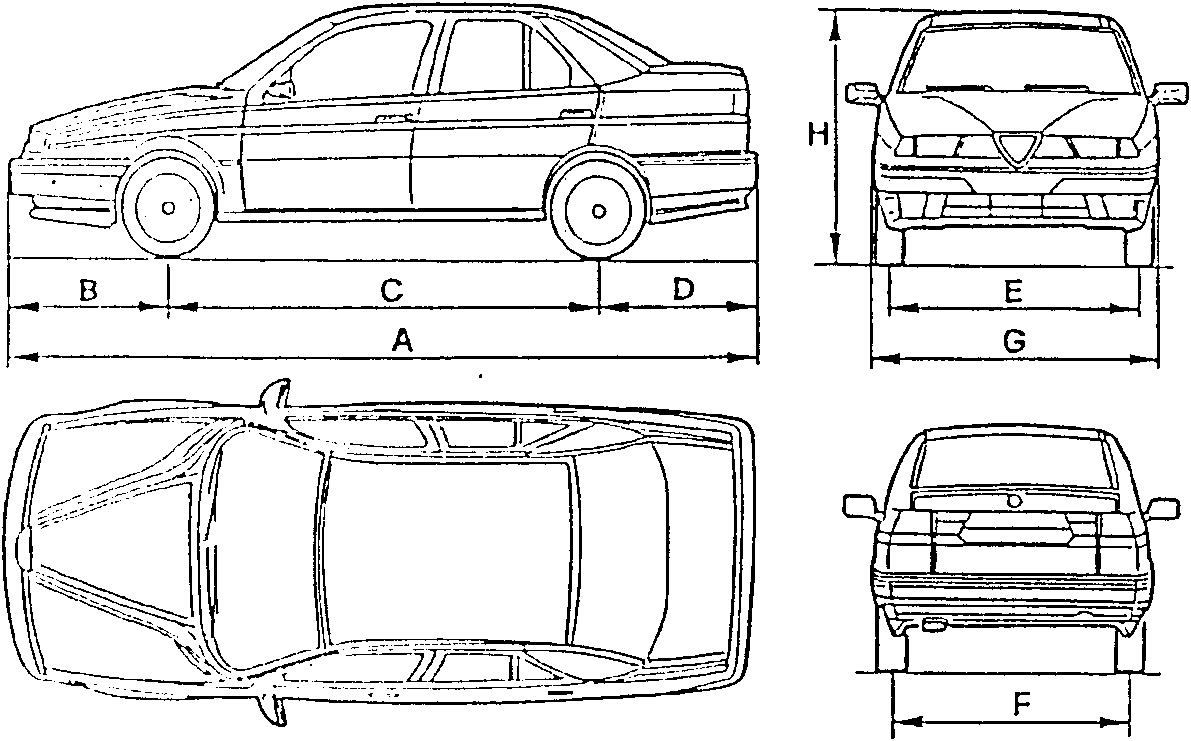

| Dimensions | Version 155 | ||
|---|---|---|---|
| A | Maximum length | mm | 4443 |
| B | Front projection | mm | 960 |
| C | Wheel base | mm | 2540 |
| D | Rear projection | mm | 943 |
| E | Front wheel track | mm | 1477 |
| F | Rear wheel track | mm | 1402 |
| G | Maximum width | mm | 1700 |
| H | Maximum height | mm | 1440 |
