GU-26 (page 2 of 2)

Make

Alfa Romeo

Model

155 Factory Service Manual

Year

1992–1998

Section

GU-26

Vehicle characteristics and maintenanceGU-26 · page 2 of 2

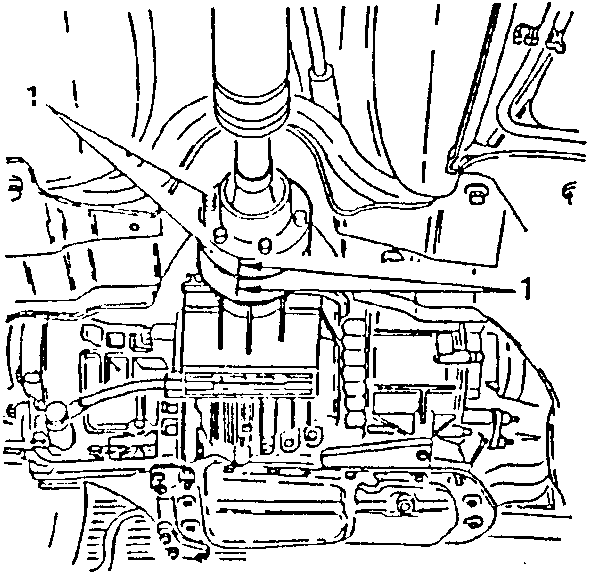

1. Make reference notches on the flanges of the coupling between the front section of the drive shaft and the central differential and separate them by unscrewing the relative screws.

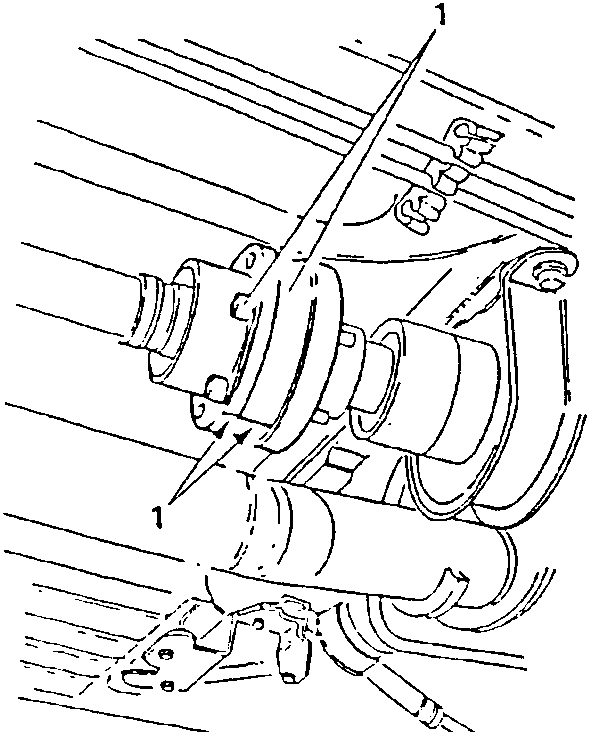

1. Make reference notches on the flanges of the coupling between the front and rear sections of the drive shaft and separate them by unscrewing the relative screws.

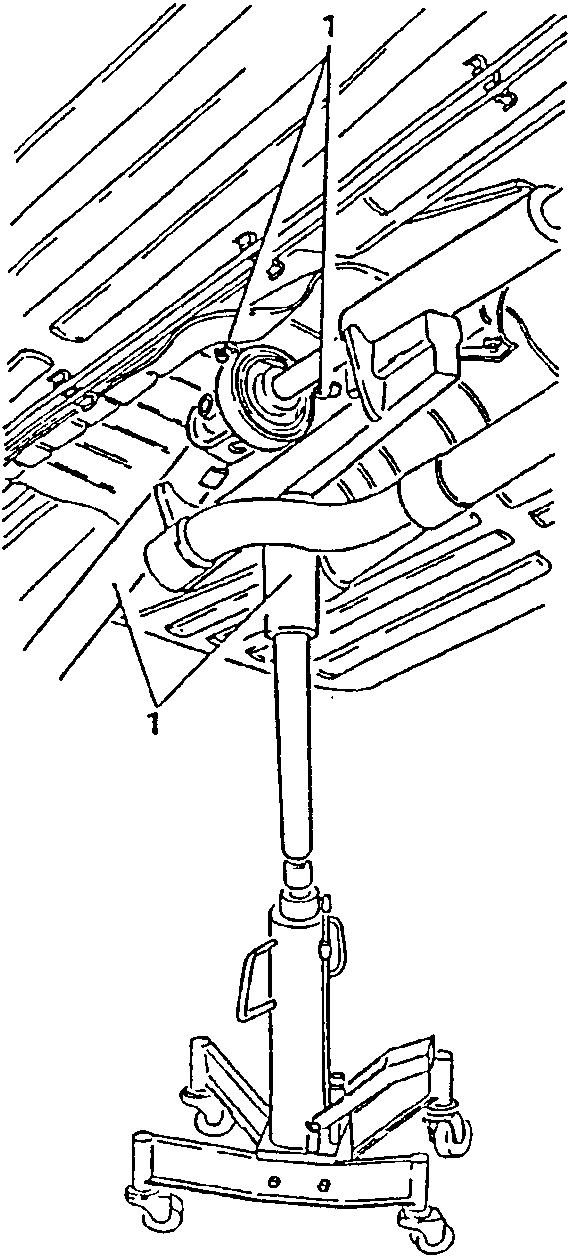

1. Support the front and central sections of the drive shaft using an appropriate tool and after unscrewing the screws securing the central flexible support remove them.

02 Maintenance
