Paint identification label

This is located on the engine compartment crossmember.

It carries the identification data listed on the right:

• A. Manufacturer
• B. Homologation number
• C. Vehicle identification code
• D. Chassis serial number
• E. Maximum gross vehicle weight
• F. Maximum gross vehicle weight including trailer.
• G. Maximum gross weight on front axle.
• H. Maximum gross weight on rear axle.
• I. Engine code
• L. Chassis code
• M. Number for spare parts
• N. Smoke opacity index (for Diesel and Turbo Diesel engines)
• O. Supplier's code
• P. Foreign manufacturer

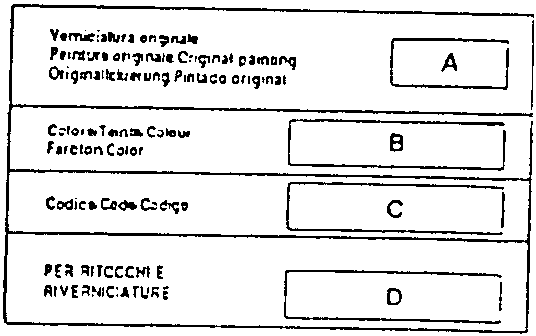

PAINT IDENTIFICATION LABEL

This is located on the inner part of the luggage compartment and carries the data given on the right:

• A. Paint manufacturer
• B. Colour name
• C. Colour code
• D. Respray and touch-up code
