Body paint identification label

This can be found on the engine compartment cross-member and carries the following identification data:

• A. Manufacturer's trade name
• B. Homologation number
• C. Vehicle type identification code
• D. Progressive chassis number
• E. Maximum weight allowed for fully loaded vehicle
• F. Maximum weight allowed for fully loaded vehicle with trailer
• G. Maximum weight allowed on first axle (front)
• H. Maximum weight allowed on second axle (rear)
• I. Engine type
• L. Body type serial number
• M. Number for spare parts
• N. Correct value of the smoke coefficient (for diesel and turbo diesel engines)
• O. Supplier's code
• P. Producing country

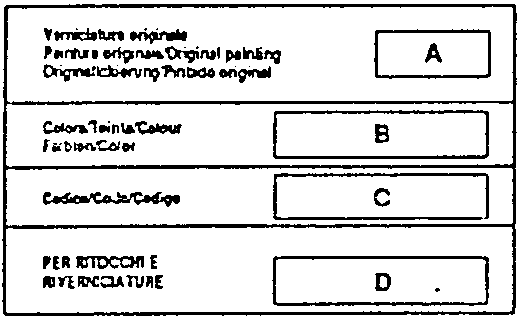

BODY PAINT IDENTIFICATION LABEL

This is located in the inner part of the luggage compartment and carries the following data:

• A. Paint manufacturer
• B. Name of colour
• C. Colour code
• D. Touch-up or respray colour code
