Substitution

Substitution

• Place the vehicle on a lift.
• Remove the front right-hand wheel.
• Remove the central engine protection moulding from the right-hand wheel housing.
• Raise the vehicle.

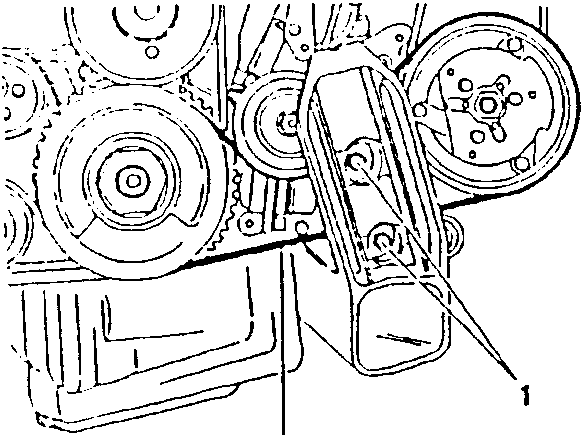

1. Loosen the two screws securing the belt tensioner.
2. Remove the air conditioning compressor drive belt.

• Fit a new belt by reversing the procedure followed for removal.

1. Part 1
2. Part 2

1.824.018.000
(C.2.0131)

• Check that the tension values measured with the specific tool are within the specified limits.

POWER STEERING PUMP DRIVE BELT

Checking and tensioning

• Place the vehicle on a lift and raise it.

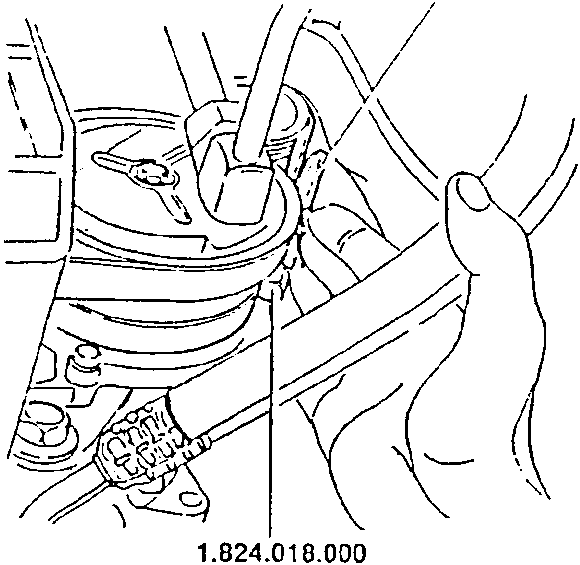

1. Working from under the vehicle, insert tool N° 1.824.018.000 (C.2.0131), as shown in the illustration.

NOTE: The belt can be re-tensioned after a brief testing period, operating as follows:

• run the engine until it reaches normal operating temperature
• run the engine for about 10 minutes
• switch off the engine and wait until it cools
• re-tighten the belt to the correct value.
