Lifting and towing points

The specific tools play a very important role in the maintenance of the vehicle as they are able to guarantee an accurate, reliable and rapid service.

It must be noted that the length of the various operations has been calculated considering the use of the specific tools.

This manual lists and illustrates the special tools designed by the vehicle manufacturer to carry out overhaul and maintenance activities on the vehicle.

The tool number is formed by a new number of 10 digits and an old number of 1 letter and 5 digits.

e.g.: 1.821.124.000
(A.3.0621)

The assistance network can supply particular specific tools through each Alfa Romeo dealer following procedures which already exist.

LIFTING AND TOWING POINTS

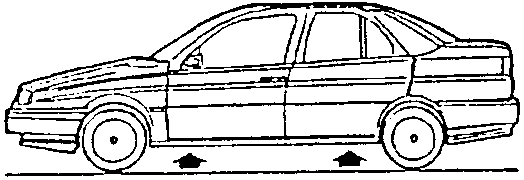

• If it is necessary to raise the vehicle, place jacks at the points indicated in the illustration.

CAUTION
After the vehicle has been raised on the jacks, it must be supported by suitable safety stands.
Before lifting the rear (front) end of the vehicle lock the wheels by placing chocks in front of (behind) the front (rear) wheels.

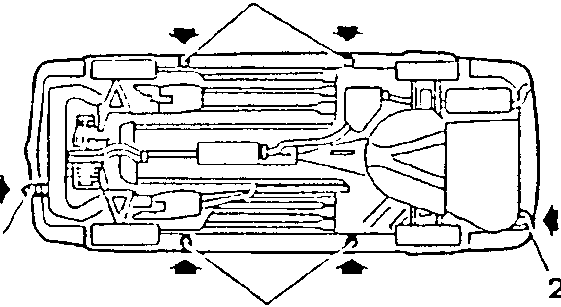

1. Front tow hook
2. Rear tow hook

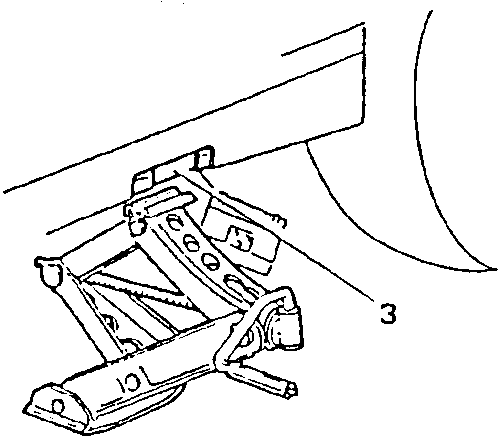

3. Jack socket
