Specific tools

SPECIFIC TOOLS

GENERALITIES

Specific tools play an important part in vehicle maintenance as they are able to guarantee accurate, reliable and quick service.

It should be noted that the times for the various operations have been calculated considering the use of the specific tools.

This manual lists and illustrates the special tools designed expressly by the Manufacturer for overhauling, maintenance and repair operations on the vehicle.

The tool code is formed of a new number with 10 digits and an old number with 1 letter and 5 digits.

Es.: 1.820.088.000
(A.2.0461)

Tools manufactured recently only have the new number. The service network can supply particular specific tools, through Alfa Romeo Dealers following the existing procedures.

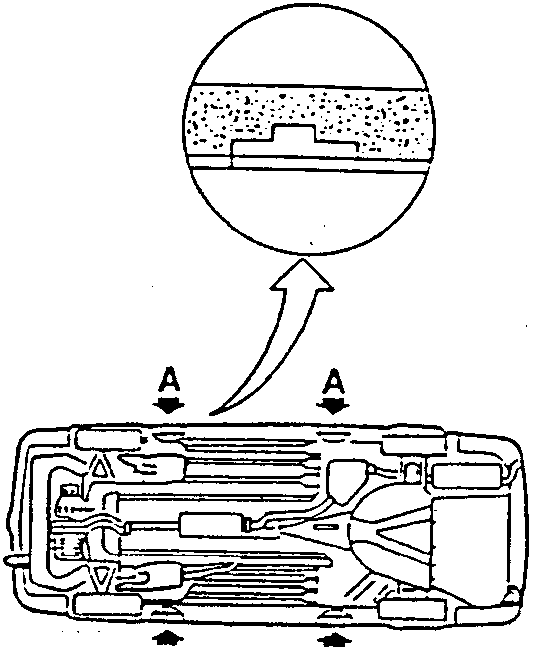

NOTE: These lifting points, two for each side of the car, are shown by an arrow on the under-door strips.

CAUTION: Be careful to insert the groove of the upper part of the jack correctly on the protruding profile of the body.

VEHICLE LIFTING POINTS

Use of the jack supplied with the vehicle

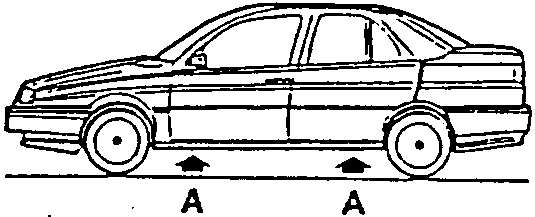

• If it is necessary to raise the vehicle using the car jack, place it in one of the points (A) shown in the illustration.
