Alfa Romeo 155 Factory Service Manual (1992-1998)02 · Vehicle characteristics and maintenance
02 · Maintenance

Air conditioning compressor drive belt

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Substitution › Air conditioning compressor drive belt
Vehicle characteristics and maintenanceAir conditioning compressor drive belt
  • Place the vehicle on a lift.
  • Remove the air conditioning compressor drive belt (see specific procedure).
  1. Loosen the two screws securing belt tensioner.
  2. Adjust the micrometric tensioning screw in order to reduce belt tension.
  3. Remove the water pump - alternator drive belt.
  • Fit a new belt by reversing the procedure followed for removal.

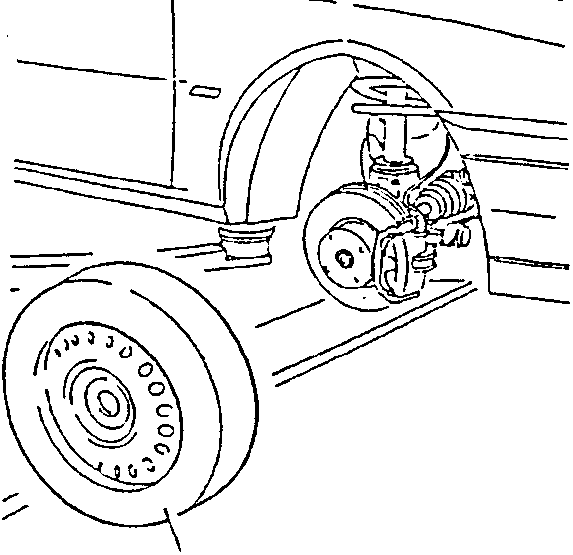

Vehicle front right wheel and suspension components
  1. Remove the central engine protection moulding through the right-hand wheel housing.

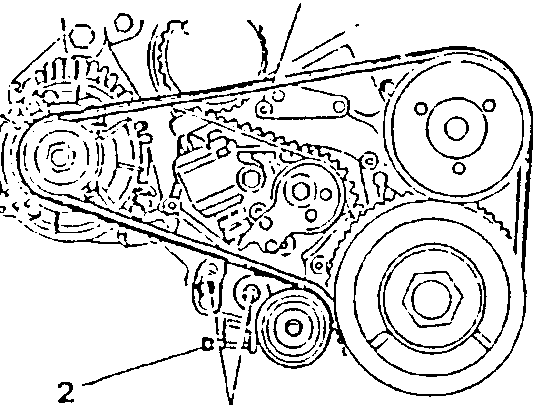

Engine belt system with pulleys and tensioner

AIR CONDITIONING COMPRESSOR DRIVE BELT

Checking and tensioning

  • Place the vehicle on a lift.
  1. Remove the front right-hand wheel.

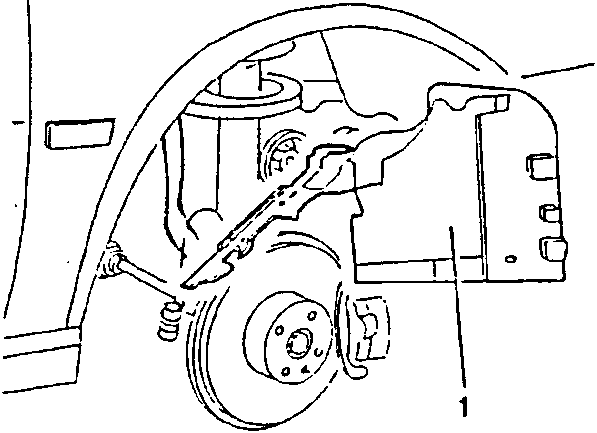

Front right wheel hub and brake assembly
