Location of windscreen wind noise

Check / test 7035AB

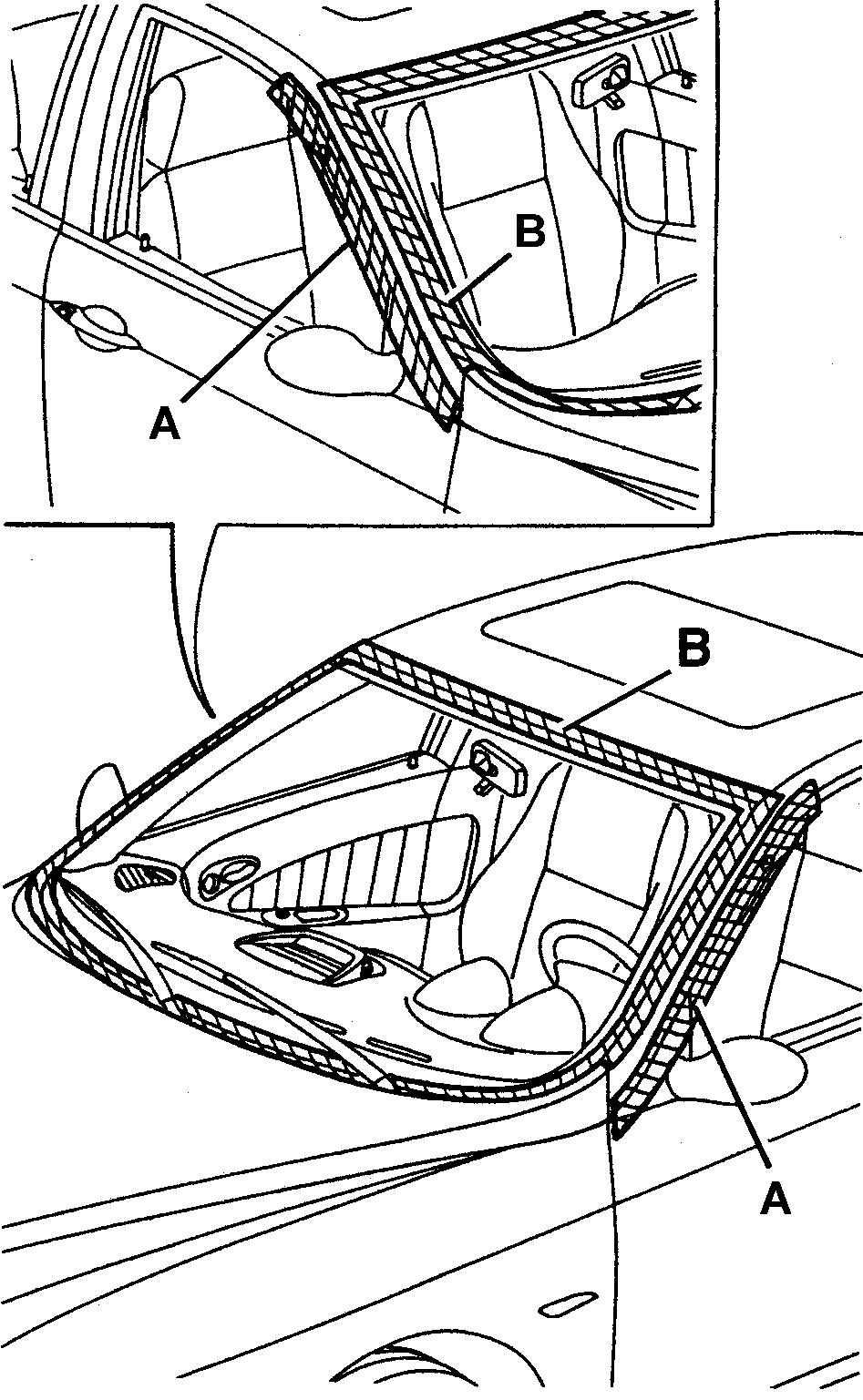

Tape the various areas shown in the diagram using masking tape.

Carry out a road test letting the vehicle gradually reach the speed at which the noise appears: if the noise persists, check that the windscreen has been correctly taped and also check whether the source of the noise may be in the area of the sun roof.

Remove the masking tape from zone A and repeat the road test: if the noise persists, locate the noise in the area of the front doors (see See Test 7005A Location of front door wind noises ). (see 70005A)

Remove the masking tape from zone B (glass only). Check the condition of the window trim moulding (no wrinkles or pinched parts). If necessary, replace the trim, removing the glass (see Op. 7035A14 Windscreen glass (bonded type) - r+r - includes cleaning edge of glass and body housing ).
