View of assembly
- Make
- Alfa Romeo
- Model
- 156 Factory Service Manual
- Year
- 1997–2002
- Section
- Front seats › View of assembly
BodyView of assembly

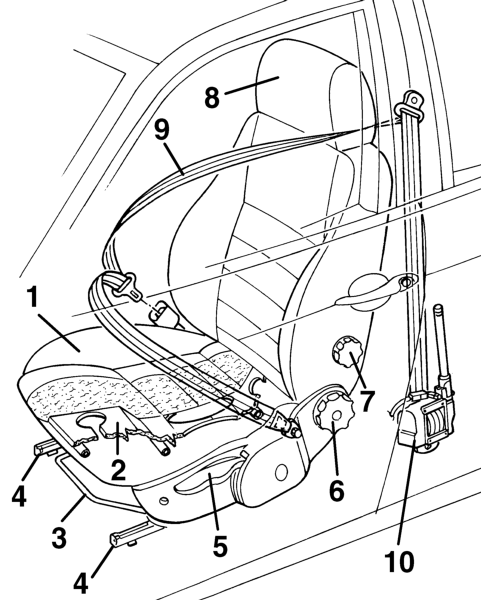

VIEW OF ASSEMBLY
- 1, Lower cushion
- 2, Magnesium alloy structure
- 3, Reach adjustment lever
- 4, Guide
- 5, Height adjustment switches
- 6, Squab rake adjustment knob
- 7, Lumbar adjustment knob
- 8, Head restraint
- 9, Seat belt
- 10, Pretensioner
The diagram shows the entire subassembly
