Operation 7055A17 · S.W. · Exterior mouldings

Removal

Open the tailgate.

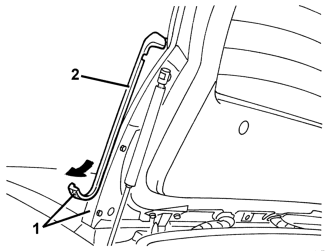

1 Remove the adhesive tape securing the spoiler side seal.

2 Recover the seal.

Refitting

Check that seal is undamaged.

Clean the area of the spoiler where the adhesive is to be applied and degrease with heptane.

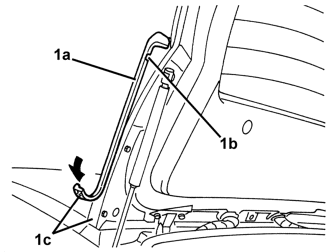

1 Position seal 1a, using groove 1b as a positioning reference, and stick down adhesive tape 1c.

Close the tailgate.
